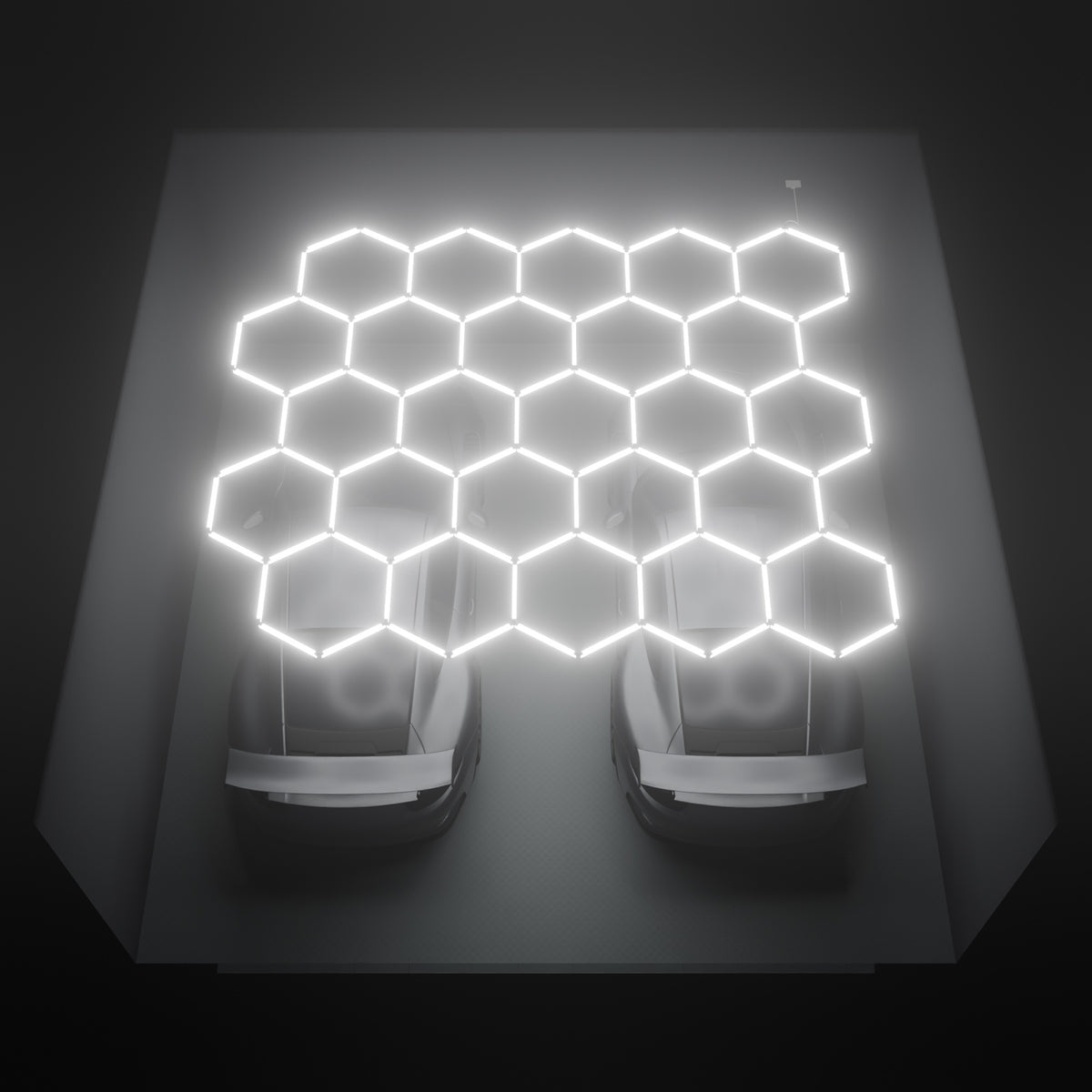

  • ULTRABEAM Hex Classic 25-Grid A, 4.5 x 3.8 m, lit on the ceiling of a 6 x 6 m double garage
    Shown to scale in a 6 x 6 m double garage

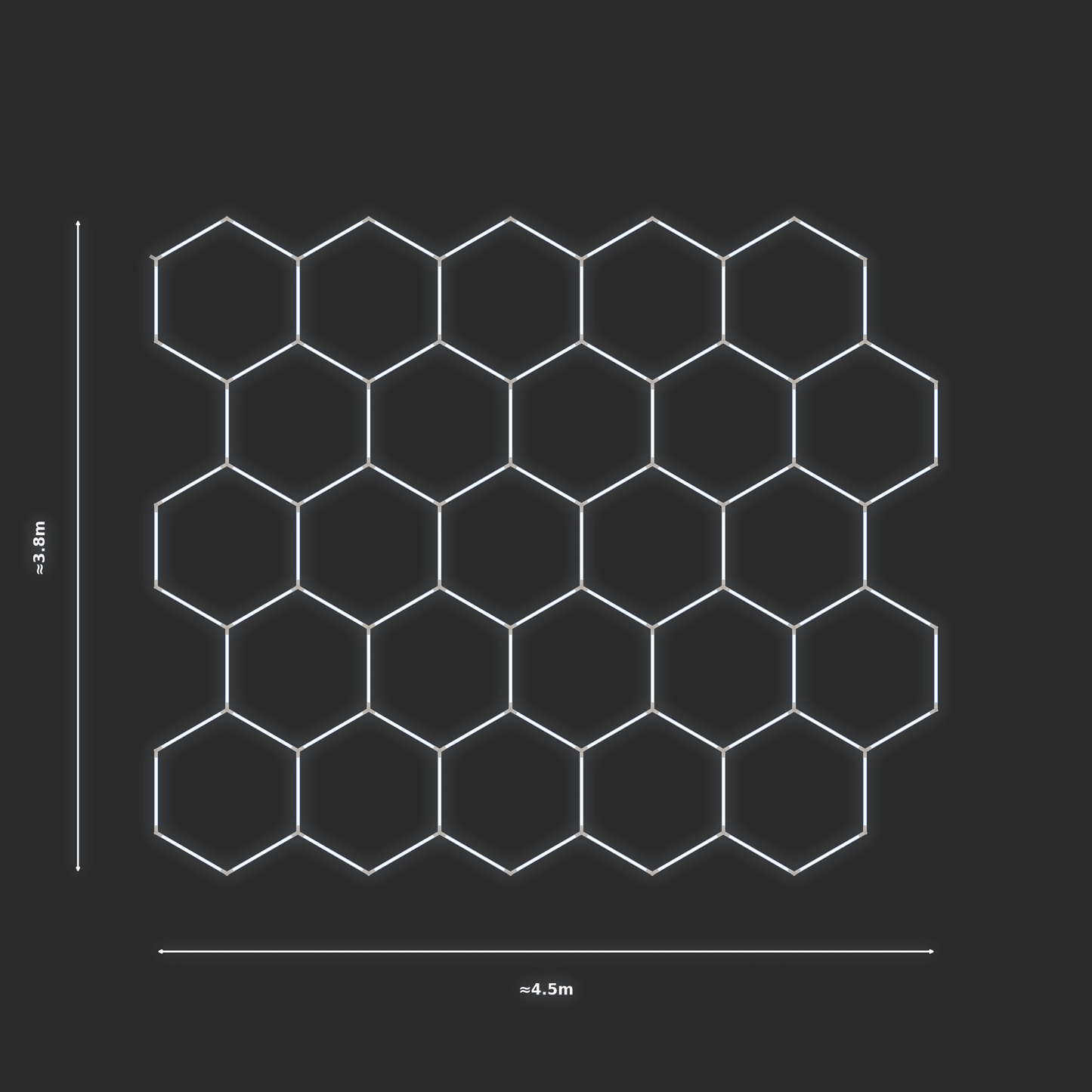

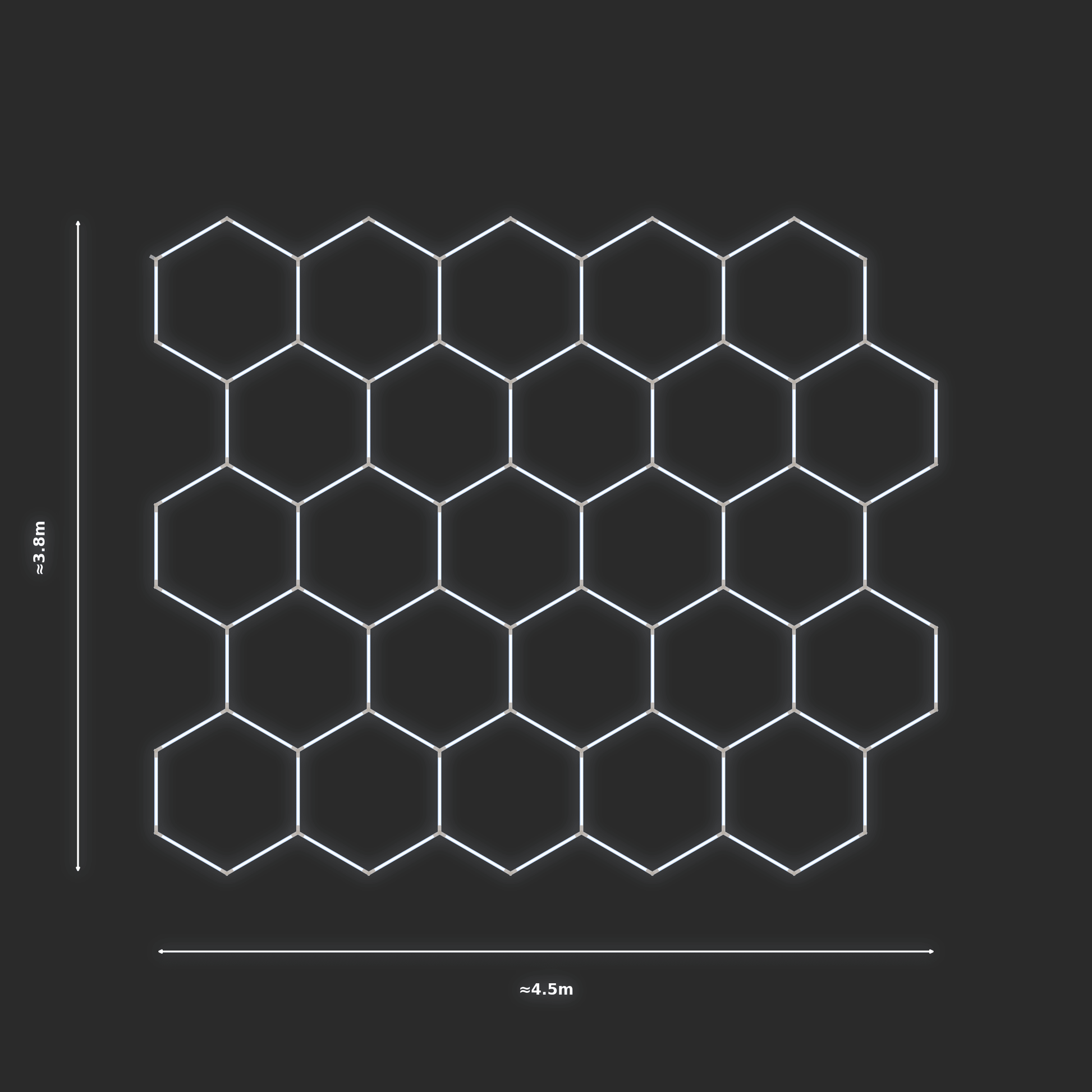

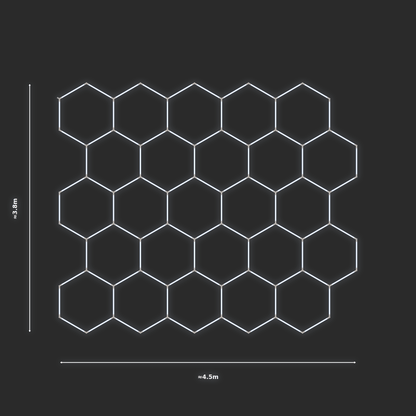

  • ULTRABEAM LED Light Kit Hex Classic 3.8x4.5m 564W — None
    Sale

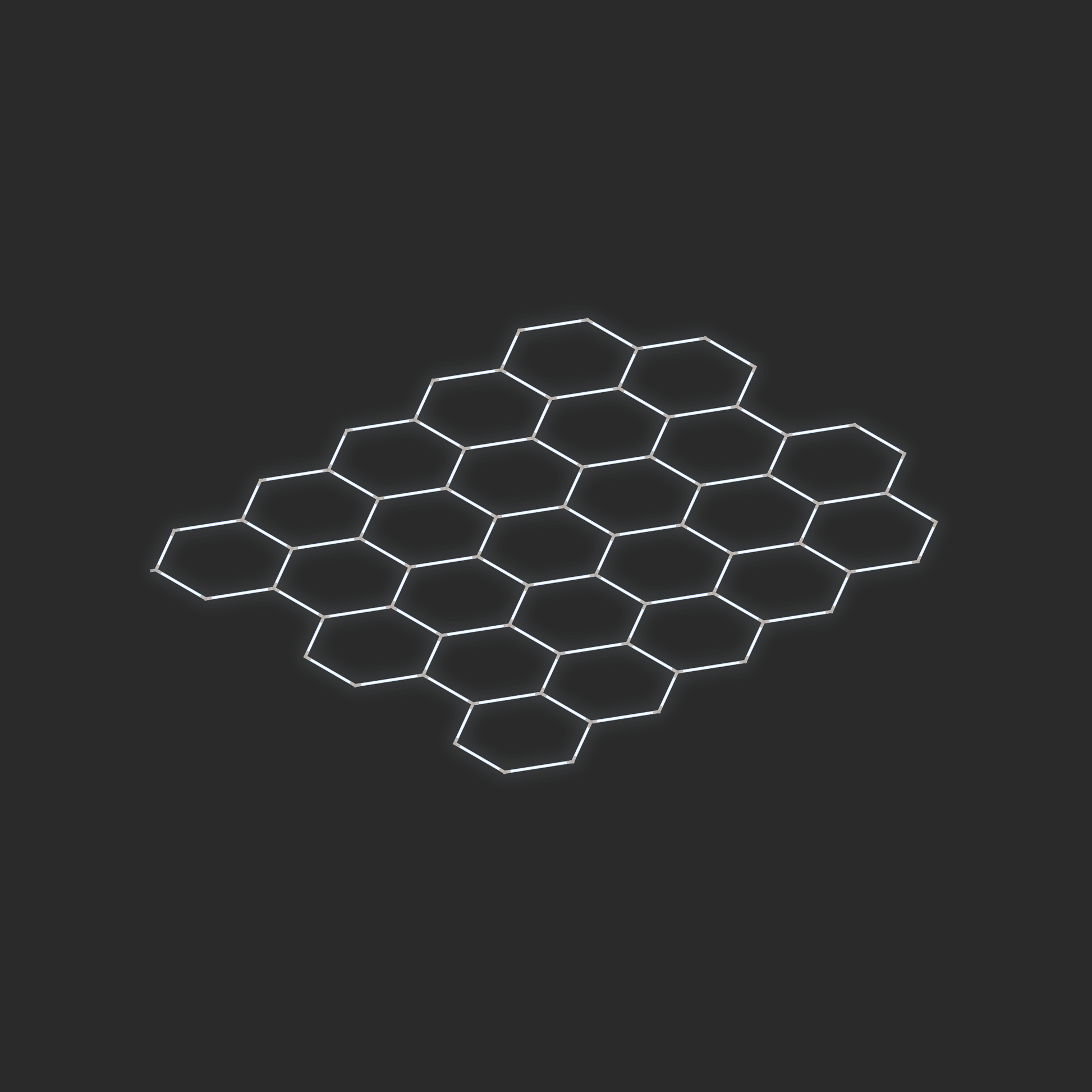

  • ULTRABEAM LED Light Kit Hex Classic 3.8x4.5m 564W — lit-iso
  • ULTRABEAM LED bars clicking into a clear connector and building out into a lit ceiling grid

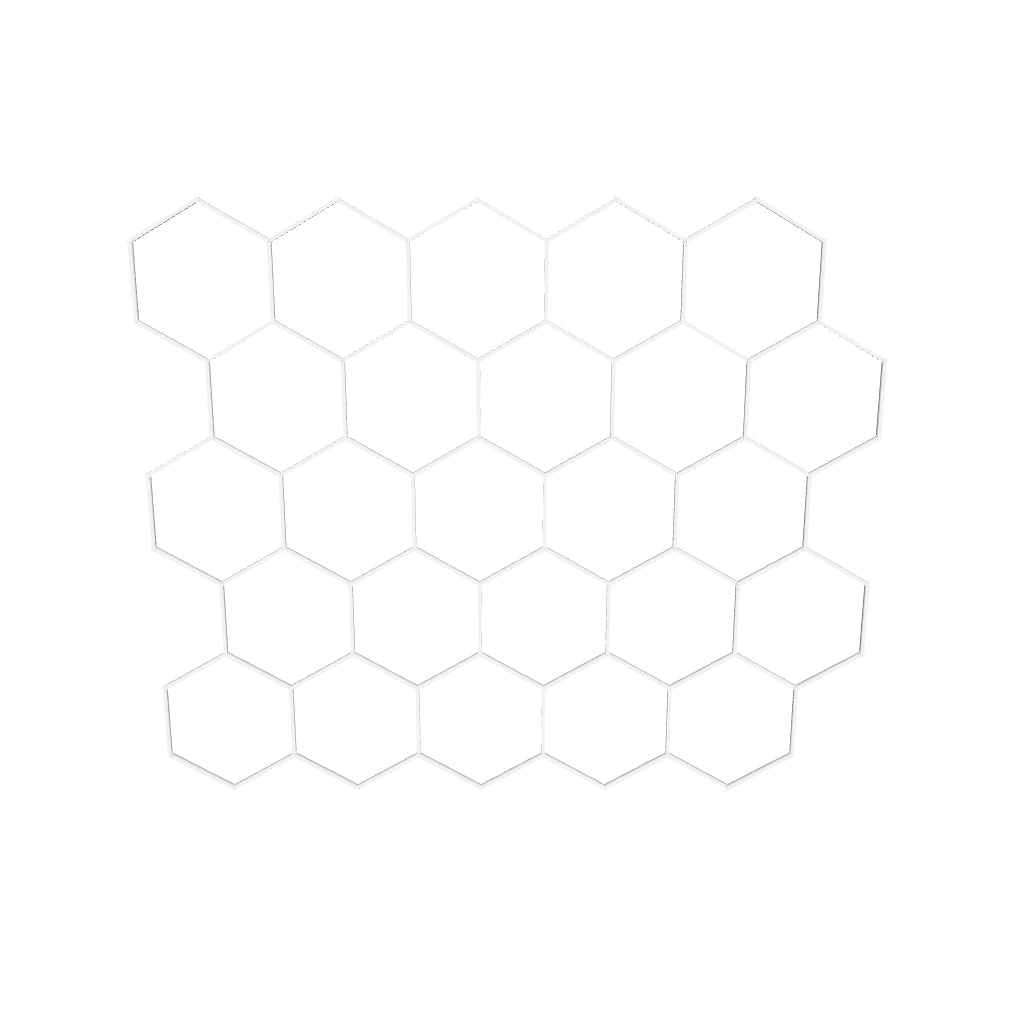

  • ULTRABEAM LED Light Kit Hex Classic 3.8x4.5m 564W — model 3D model
  • ULTRABEAM three-way connector joining the LED tubes
  • ULTRABEAM tube and connector joint, cut away to show the inside
  • ULTRABEAM LED tube with its row of LED chips
  • ULTRABEAM LED tube in its aluminium frame
  • Sleek Space electronics security
  • ULTRABEAM tube and connector, showing how the joint is built
  • ULTRABEAM connector with the wiring hidden inside it
1 12

ULTRABEAM™ LED Light Kit Hex Classic 25-Grid A

ULTRABEAM™ LED Light Kit Hex Classic 25-Grid A

4.5 x 3.8 m, across a double garage

In stock in Melbourne, ready to ship Certified for Australia
$1,199
$1,499 $1,199
Save $300
Taxes included. Shipping calculated at checkout.

The kit people stop and photograph. Details

Warm White
Neutral White
Cool White
Daylight
Layout
4.5 x 3.8 m 5.2 x 3.3 m

Hex Classic, 25 hexagons. See every size

Door motor in the middle? See what fits around it

Border
  • Certified for Australia. Look up our registration
  • 5-year warranty on the LEDs and every electrical part.
  • In stock in Melbourne, with free shipping Australia-wide.
  • Plugs into a power point. Spare parts on hand.

In the garages of

View full details

Before you order

This kit is 4.5 x 3.8 m. It runs across both bays of a double garage.

Even light with no hard shadows, because it comes from the whole grid. 64,860 lumens of 6500K daylight from 94 tubes.

Lay it out on the floor, click the tubes into the connectors and test it. Then lift it and fix it to the ceiling. An afternoon with a helper.

Into a standard power point, with one 1.5 m cord for the whole kit. A border has its own cord, so it needs a second socket. To put it on a wall switch, use a licensed electrician.

94 tubes, the connectors, hanging cables, fixings and the power cord. The kit ships complete.

The kit people stop and photograph.

94 tubes. 65,000 lumens. 17 square metres of true daylight white across a 3.8 by 4.5 metre footprint. The size that anchors a serious garage, a working detail bay or a high-spec home gym.

Why it works

  • Anchors the room. 94 tubes carry even daylight across 17 square metres. Nothing dims at the perimeter, nothing dims at the centre. The kind of light a room is built around.
  • True colours. CRI 85+ daylight white shows your paint, your finish, your work as it really looks.
  • Plug and play. Standard AU 3-pin earthed outlet. On / off via your wall switch. No electrician.
  • An hour or two to install. Lay it flat, click the tubes into the connectors, lift to the ceiling, mount, plug in. Digital install instructions sent on order.
  • Spare parts on hand. Replacement tubes, connectors and the power cord are stocked individually. If a part ever needs replacing in years to come, order the exact match.

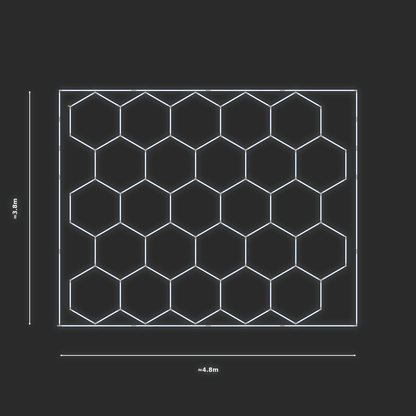

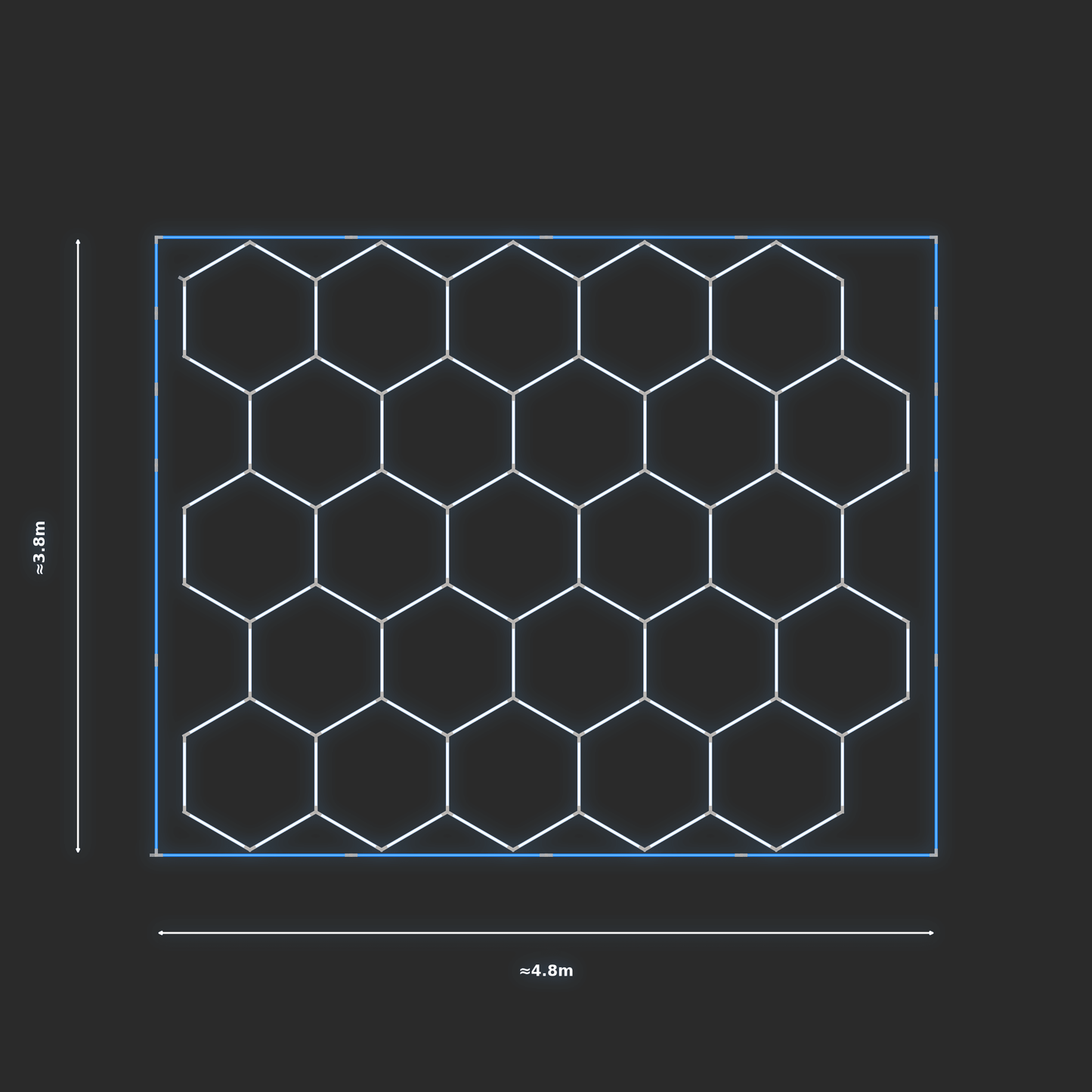

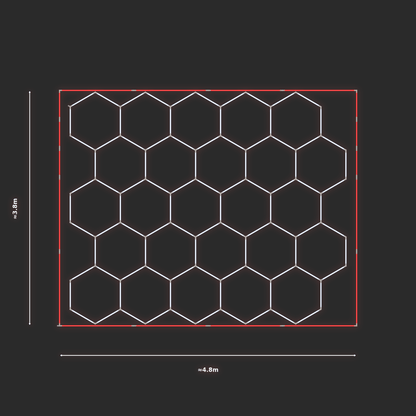

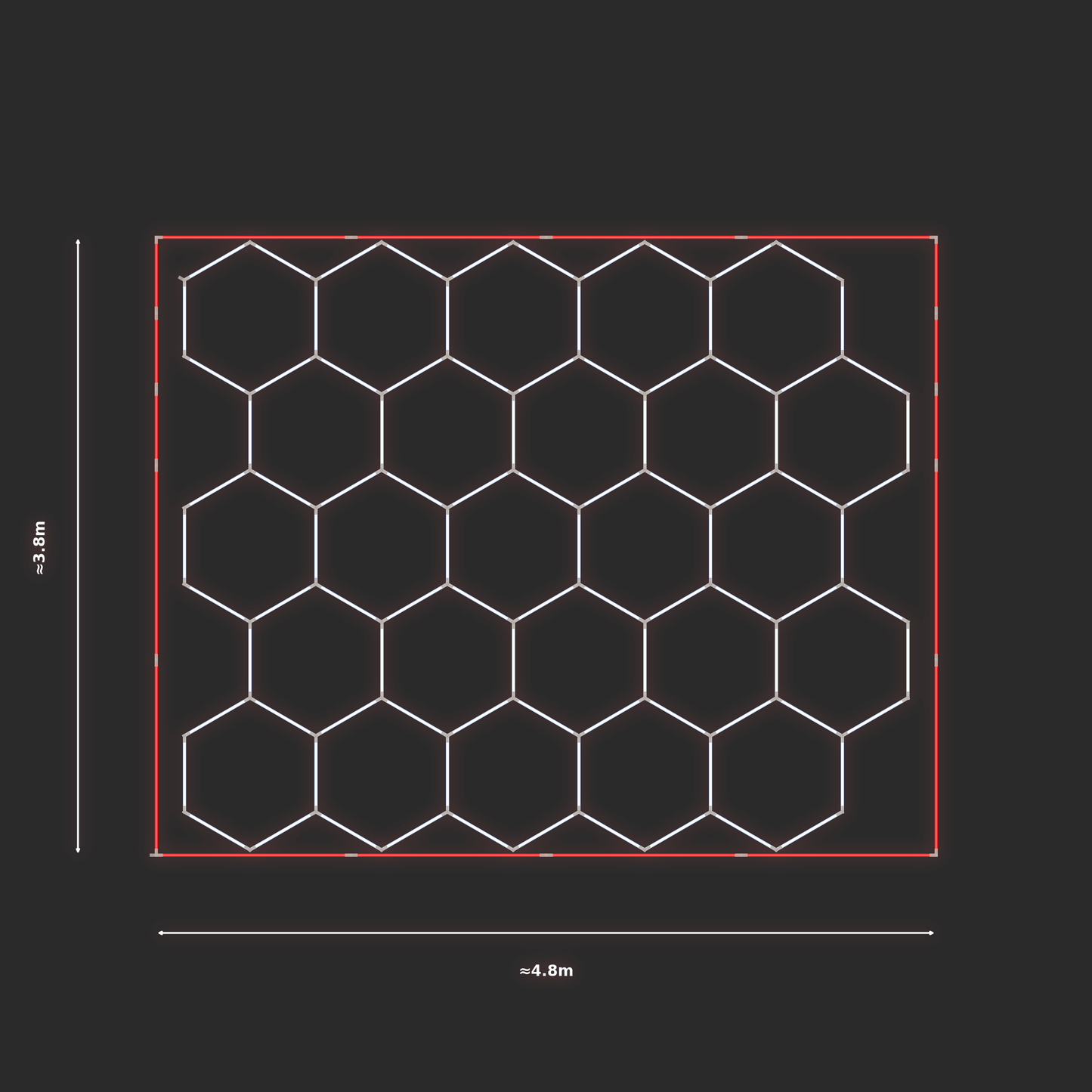

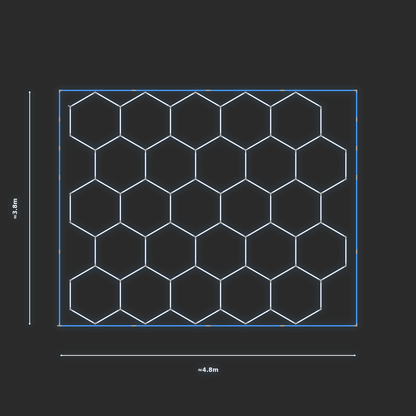

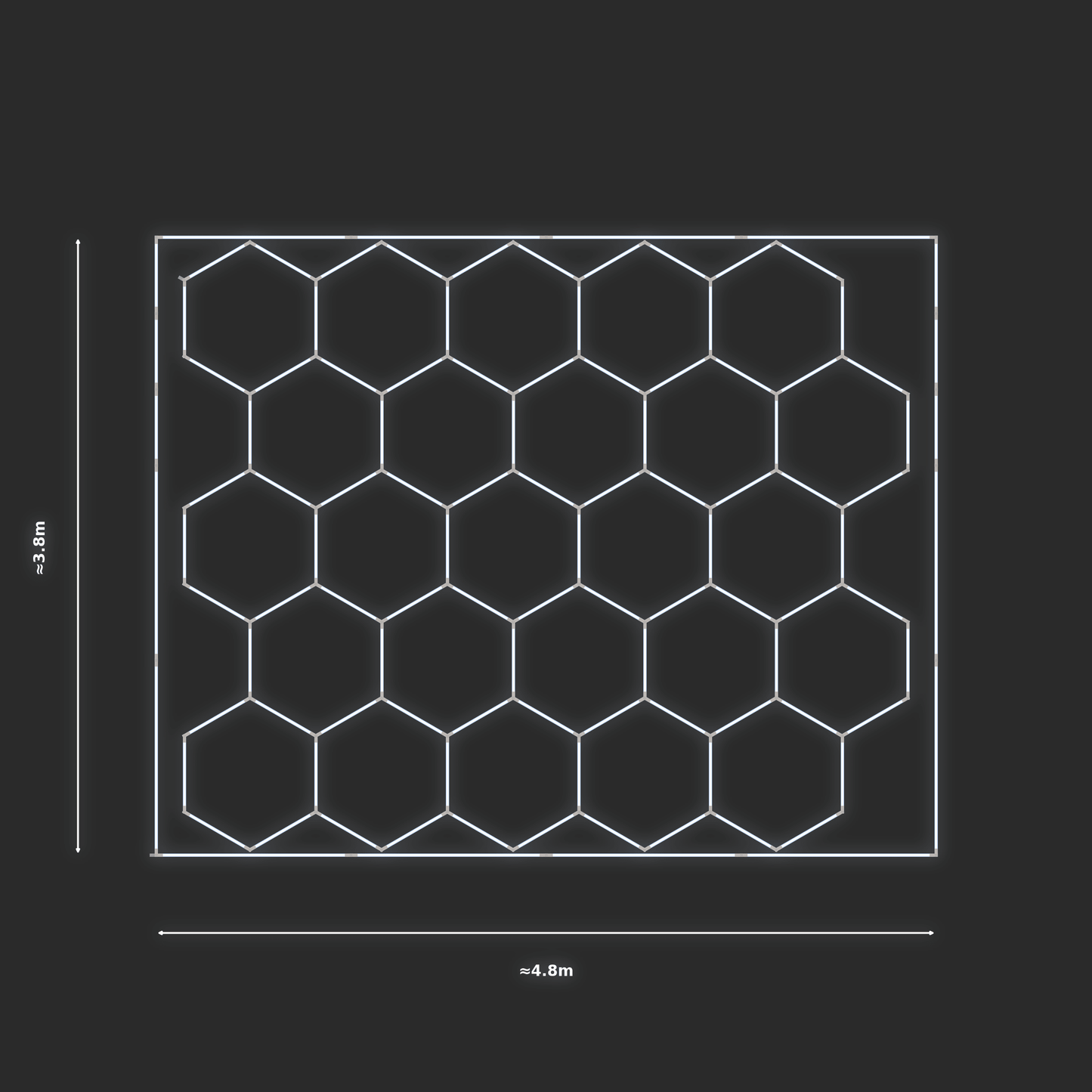

  • Optional border. Frame your array with a perimeter of Cool Daylight, Blue or Red tubes. Adds visual edge and extra brightness.
  • All configurations designed in Australia. Layout, kit composition and customer support handled in-country.
  • Built to last. Aircraft-grade aluminium frame, sealed PC lens. 50,000 hour LEDs, 5-year warranty.
  • Safe and certified. RCM marked. EMC tested against AS/NZS safety standards.

In the box (baseline, no border)

  • 94 × LED tubes (443mm, 6500K daylight, 6W each)
  • All required hex connectors and suspension cables
  • Mounting hardware
  • 1.5 metre AU 3-pin earthed power cord with adapter

Per-variant totals in the Specifications tab below.

Specifications

Dimensions3.78m × 4.49m
Coverage area16.98 m²
LED tube count94
Total power564 W
Total lumens64,860 lm
Hex cells25

Electrical

Voltage100–240V AC
Colour temperature6500K daylight
CRI85+ (true colour rendering)
Efficacy~115 lumens per watt
Lifetime50,000 hours
EnergyAbout 60% less power than equivalent fluorescent strips
DriverPer-tube driver

Build

Kit layouts designedAustralia
FrameAircraft-grade aluminium
LensSealed PC, impact-resistant
ConnectorsProprietary angled, sealed mating
PlugAS/NZS 3112 3-pin earthed, 1.5m flex

Compliance

RCM markYes
EMC testedAS/NZS CISPR 15, 61547, 61000.3.2, 61000.3.3
Warranty5 years

Installation

TimeAn hour or two with a helper
ToolsDrill, screwdriver, ladder
ElectricianNot required
MethodLay flat, click tubes into connectors, lift to ceiling, mount, plug in
MountingFlush mount or 1m suspension cables (included)
