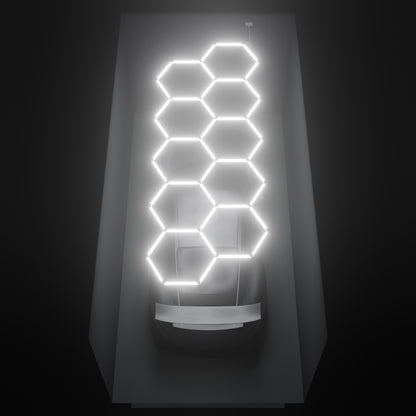

  • ULTRABEAM Hex Classic 10-Grid A, 4.5 x 1.7 m, lit on the ceiling of a 3 x 6 m single garage
    Shown to scale in a 3 x 6 m single garage

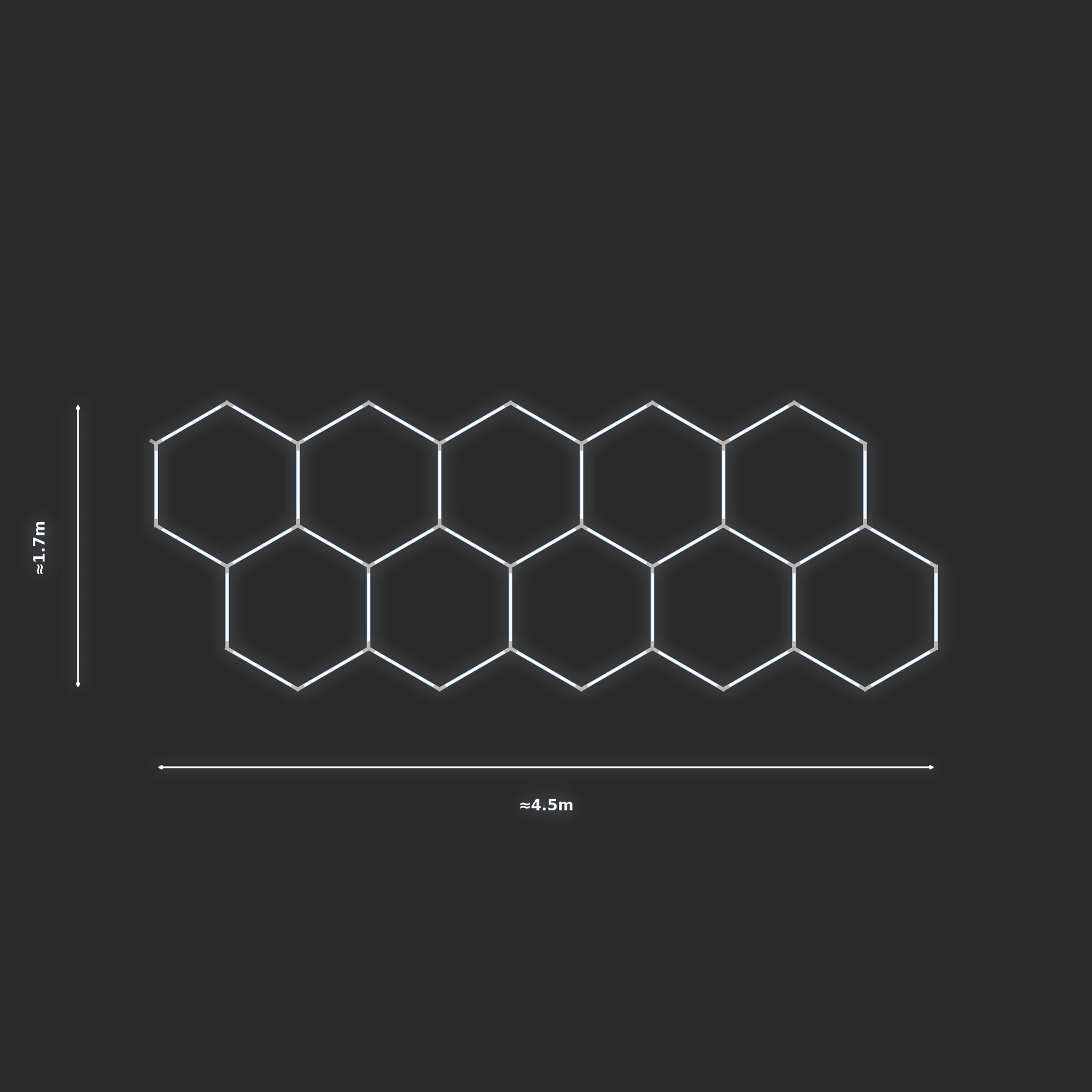

  • ULTRABEAM LED Light Kit Hex Classic 1.7x4.5m 258W — None
    Sale

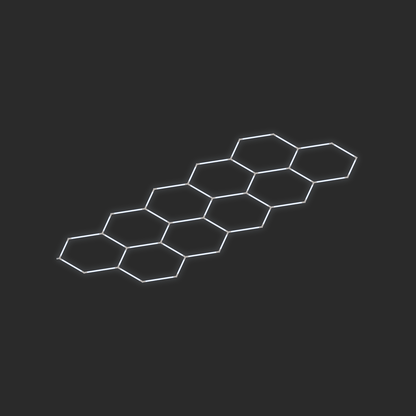

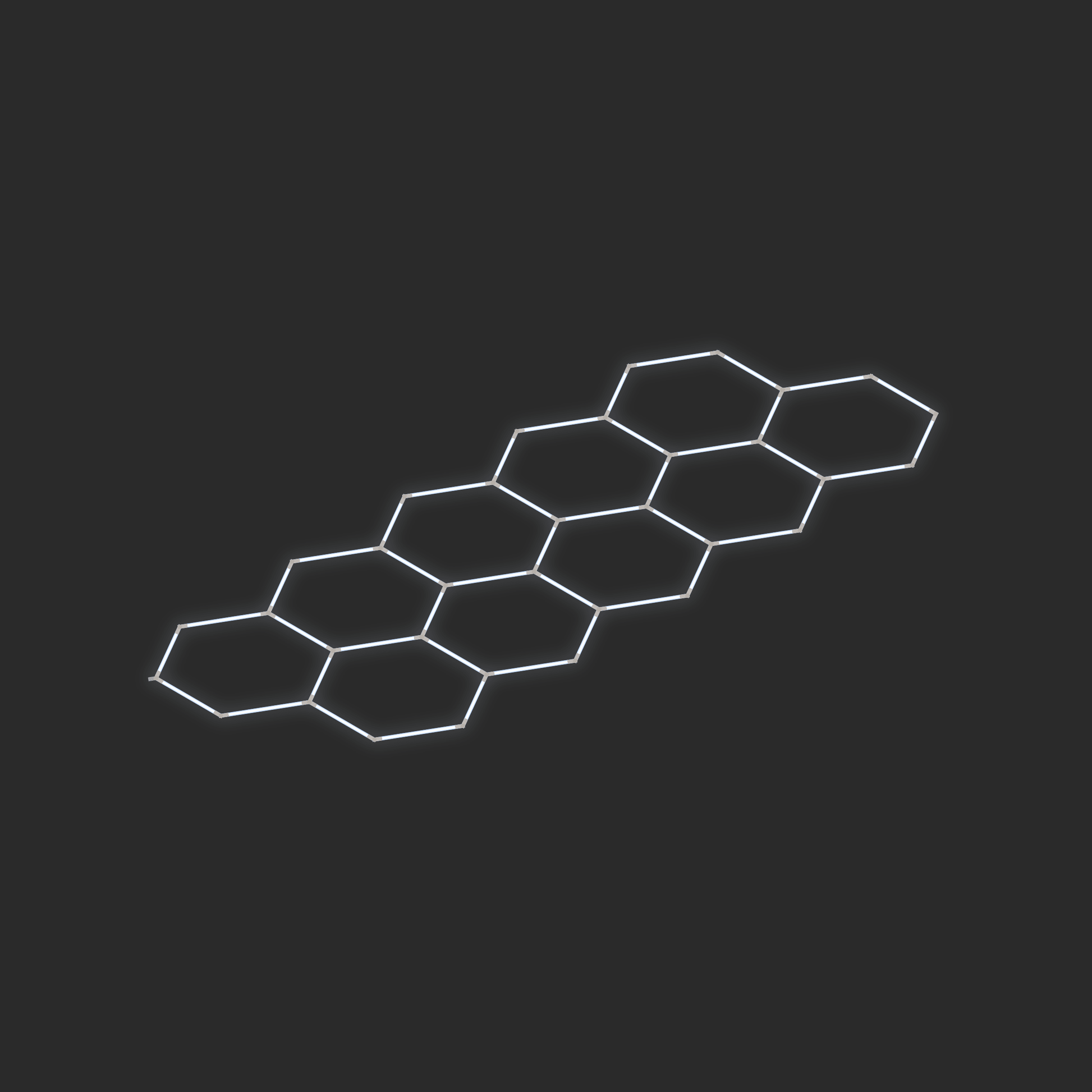

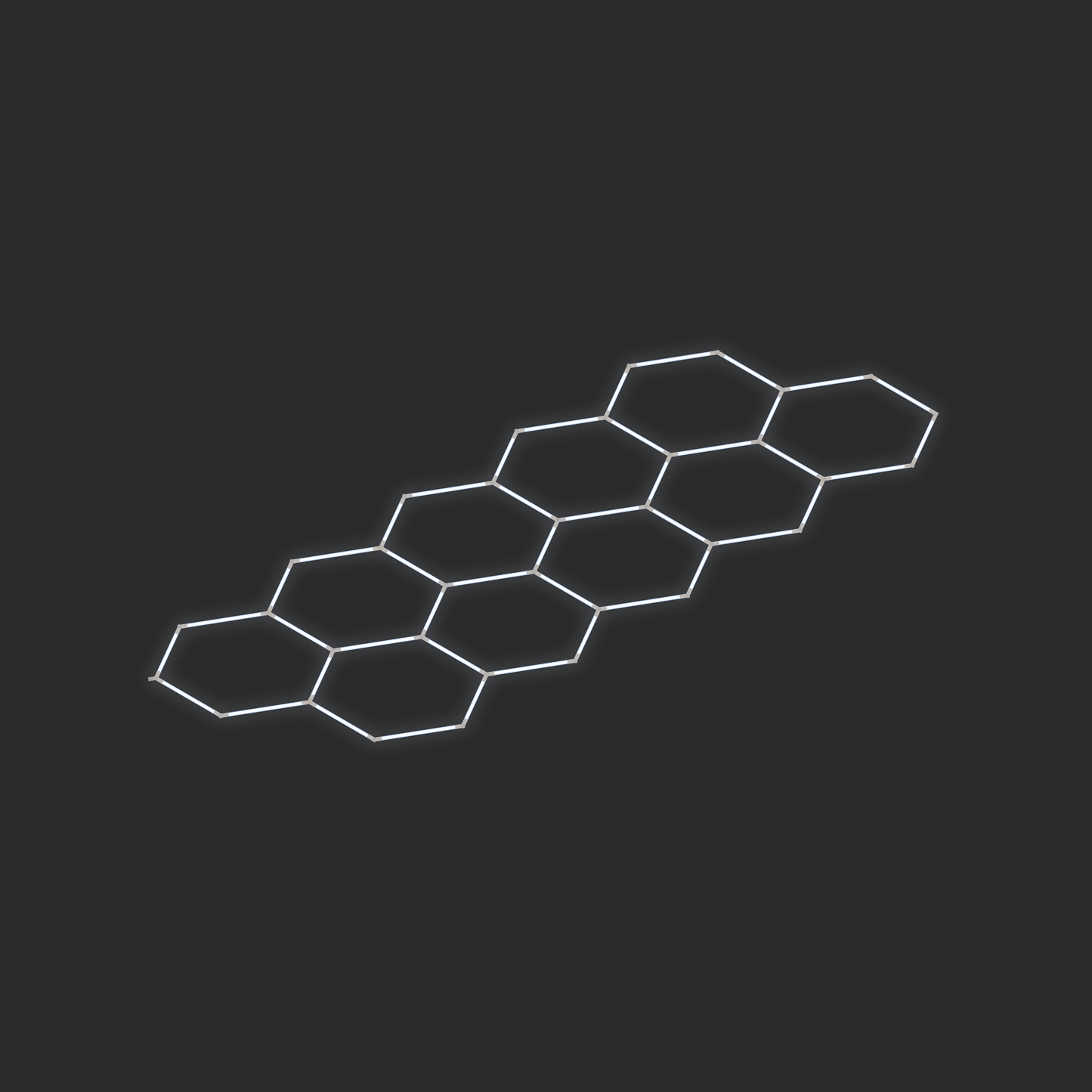

  • ULTRABEAM LED Light Kit Hex Classic 1.7x4.5m 258W — lit-iso
  • ULTRABEAM LED bars clicking into a clear connector and building out into a lit ceiling grid

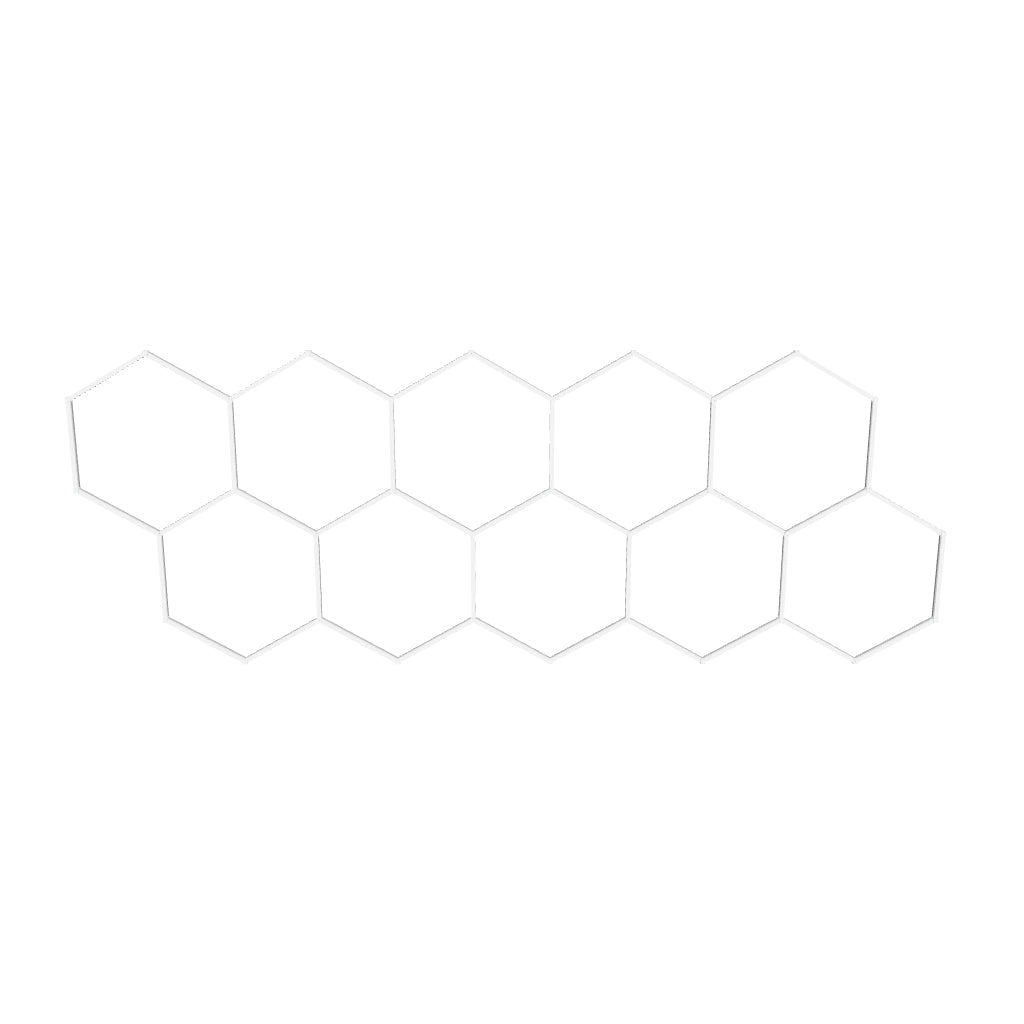

  • ULTRABEAM LED Light Kit Hex Classic 1.7x4.5m 258W — model 3D model

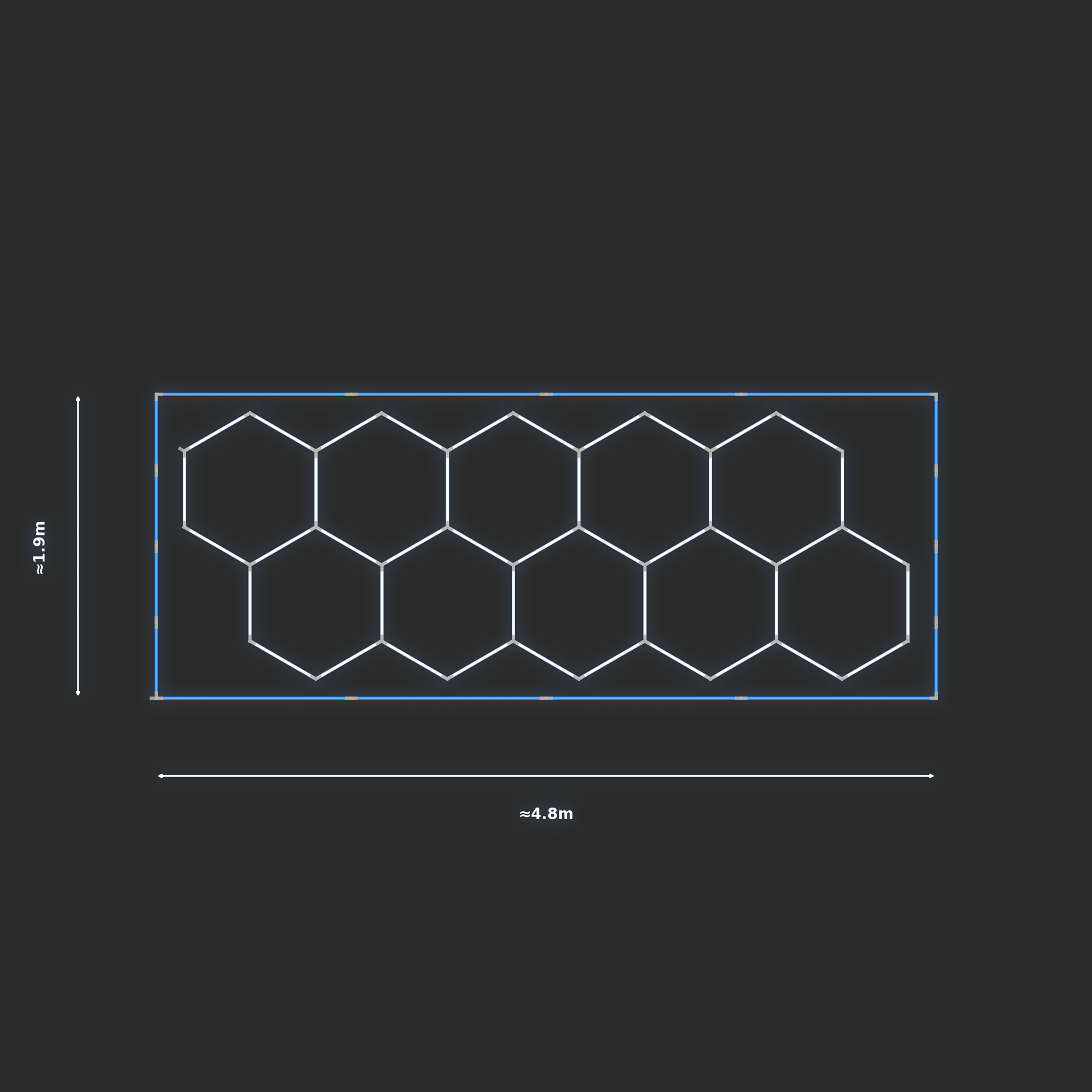

  • ULTRABEAM LED Light Kit Hex Classic 1.7x4.5m 258W — Blue

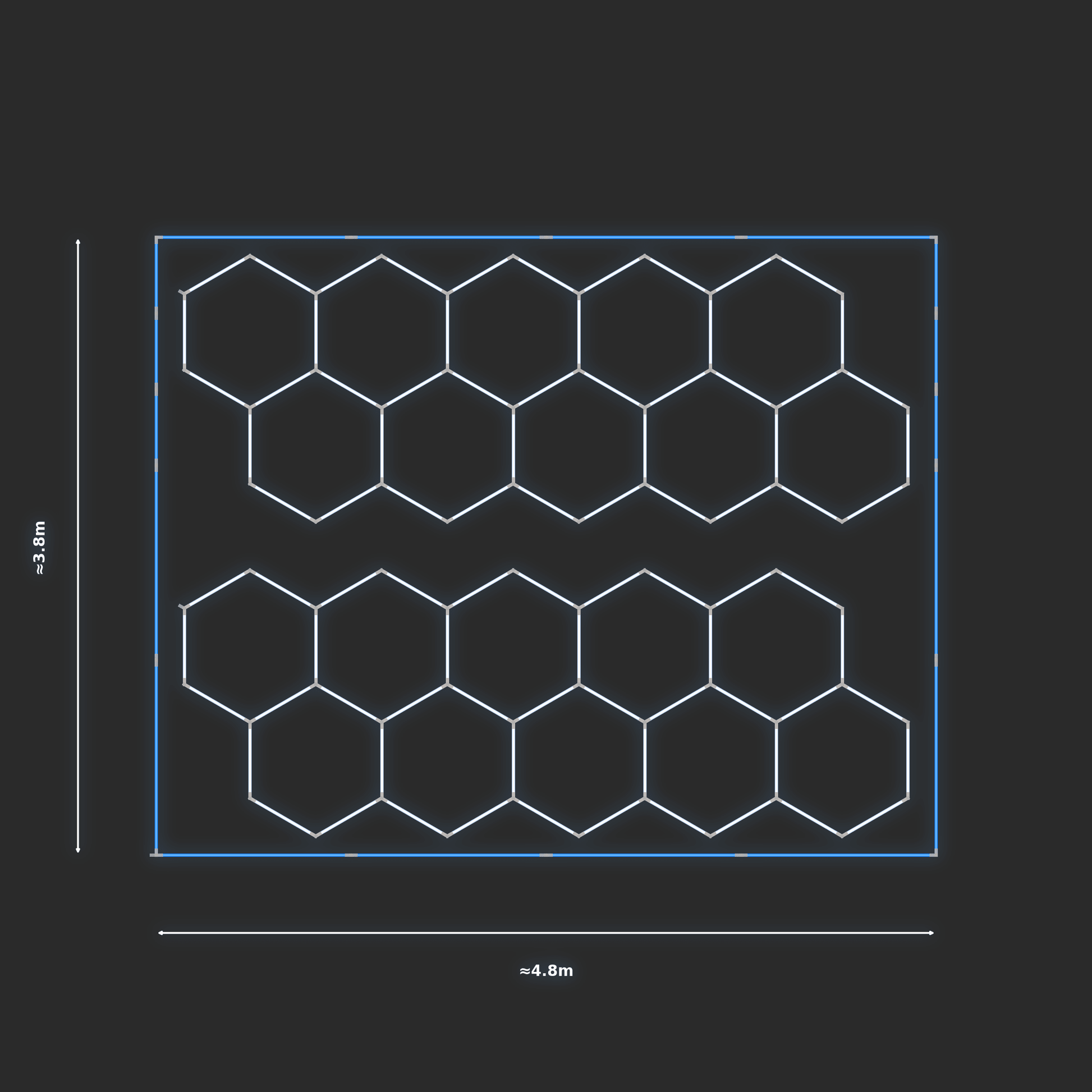

  • ULTRABEAM LED Light Kit Hex Classic 1.7x4.5m 258W — Blue, 2-pack
  • ULTRABEAM three-way connector joining the LED tubes
  • ULTRABEAM tube and connector joint, cut away to show the inside
  • ULTRABEAM LED tube with its row of LED chips
  • ULTRABEAM LED tube in its aluminium frame
  • Sleek Space electronics security
  • ULTRABEAM tube and connector, showing how the joint is built
  • ULTRABEAM connector with the wiring hidden inside it
1 14

ULTRABEAM™ LED Light Kit Hex Classic 10-Grid A

ULTRABEAM™ LED Light Kit Hex Classic 10-Grid A

4.5 x 1.7 m, down a single garage

In stock in Melbourne, ready to ship Certified for Australia
$699
$849 $699
Save $150
Taxes included. Shipping calculated at checkout.
Layout
4.5 x 1.7 m 3.1 x 2.5 m

Hex Classic, 10 hexagons. See every size

Door motor in the middle? See what fits around it

Pack
Border

In the garages of

View full details

Before you order

This kit is 4.5 x 1.7 m. It lights the length of a single garage.

Even light with no hard shadows, because it comes from the whole grid. 29,670 lumens of 6500K daylight from 43 tubes.

Lay it out on the floor, click the tubes into the connectors and test it. Then lift it and fix it to the ceiling. An afternoon with a helper.

Into a standard power point, with one 1.5 m cord for the whole kit. A border has its own cord, so it needs a second socket. To put it on a wall switch, use a licensed electrician.

43 tubes, the connectors, hanging cables, fixings and the power cord. The kit ships complete.

4.5 metres of true daylight up the ceiling.

Ten hexagons stacked tall, 43 tubes carrying 30,000 lumens through the full length of a deep room. Sized for narrow garages, long workshops, deep hallways or any single bay where the ceiling depth dominates the width.

Why it works

  • Carries the depth. 43 tubes spread the daylight evenly across 4.5 metres of column. No dim zone at the back wall.
  • True colours. CRI 85+ daylight white shows your paint, your finish, your work as it really looks.
  • Plug and play. Standard AU 3-pin earthed outlet. On / off via your wall switch. No electrician.
  • An hour or two to install. Lay it flat, click the tubes into the connectors, lift to the ceiling, mount, plug in. Digital install instructions sent on order.
  • Spare parts on hand. Replacement tubes, connectors and the power cord are stocked individually. If a part ever needs replacing in years to come, order the exact match.
  • Optional border. Frame your array with a perimeter of Cool Daylight, Blue or Red tubes. Adds visual edge and extra brightness.
  • All configurations designed in Australia. Layout, kit composition and customer support handled in-country.
  • Built to last. Aircraft-grade aluminium frame, sealed PC lens. 50,000 hour LEDs, 5-year warranty.
  • Safe and certified. RCM marked. EMC tested against AS/NZS safety standards.

In the box (baseline, no border)

  • 43 × LED tubes (443mm, 6500K daylight, 6W each)
  • All required hex connectors and suspension cables
  • Mounting hardware
  • 1.5 metre AU 3-pin earthed power cord with adapter

Per-variant totals in the Specifications tab below.

Specifications

Dimensions1.67m × 4.49m
Coverage area7.5 m²
LED tube count43
Total power258 W
Total lumens29,670 lm
Hex cells10

Electrical

Voltage100–240V AC
Colour temperature6500K daylight
CRI85+ (true colour rendering)
Efficacy~115 lumens per watt
Lifetime50,000 hours
EnergyAbout 60% less power than equivalent fluorescent strips
DriverPer-tube driver

Build

Kit layouts designedAustralia
FrameAircraft-grade aluminium
LensSealed PC, impact-resistant
ConnectorsProprietary angled, sealed mating
PlugAS/NZS 3112 3-pin earthed, 1.5m flex

Compliance

RCM markYes
EMC testedAS/NZS CISPR 15, 61547, 61000.3.2, 61000.3.3
Warranty5 years

Installation

TimeAn hour or two with a helper
ToolsDrill, screwdriver, ladder
ElectricianNot required
MethodLay flat, click tubes into connectors, lift to ceiling, mount, plug in
MountingFlush mount or 1m suspension cables (included)

Shipping

Free shipping Australia-wide on all orders.

Orders are dispatched from our warehouses in Melbourne, Sydney, or Brisbane within 1-2 business days. We ship from the closest warehouse to you for fastest delivery.

Standard delivery typically takes 3-7 business days depending on your location. Express shipping available at checkout for metro areas.

Warehouse Pickup

Pickup is available from our Melbourne, Sydney and Brisbane warehouses, by advance order only: place your order first and we will let you know when it is ready to collect.

Returns

We offer a 40-day hassle-free returns policy. If you are not completely satisfied with your purchase, contact our team and we will arrange a return. Items must be unused and in original packaging.

Warranty

All products come with an Australian replacement warranty covering manufacturing defects. If any product fails under normal use, we will replace it free of charge including shipping.
