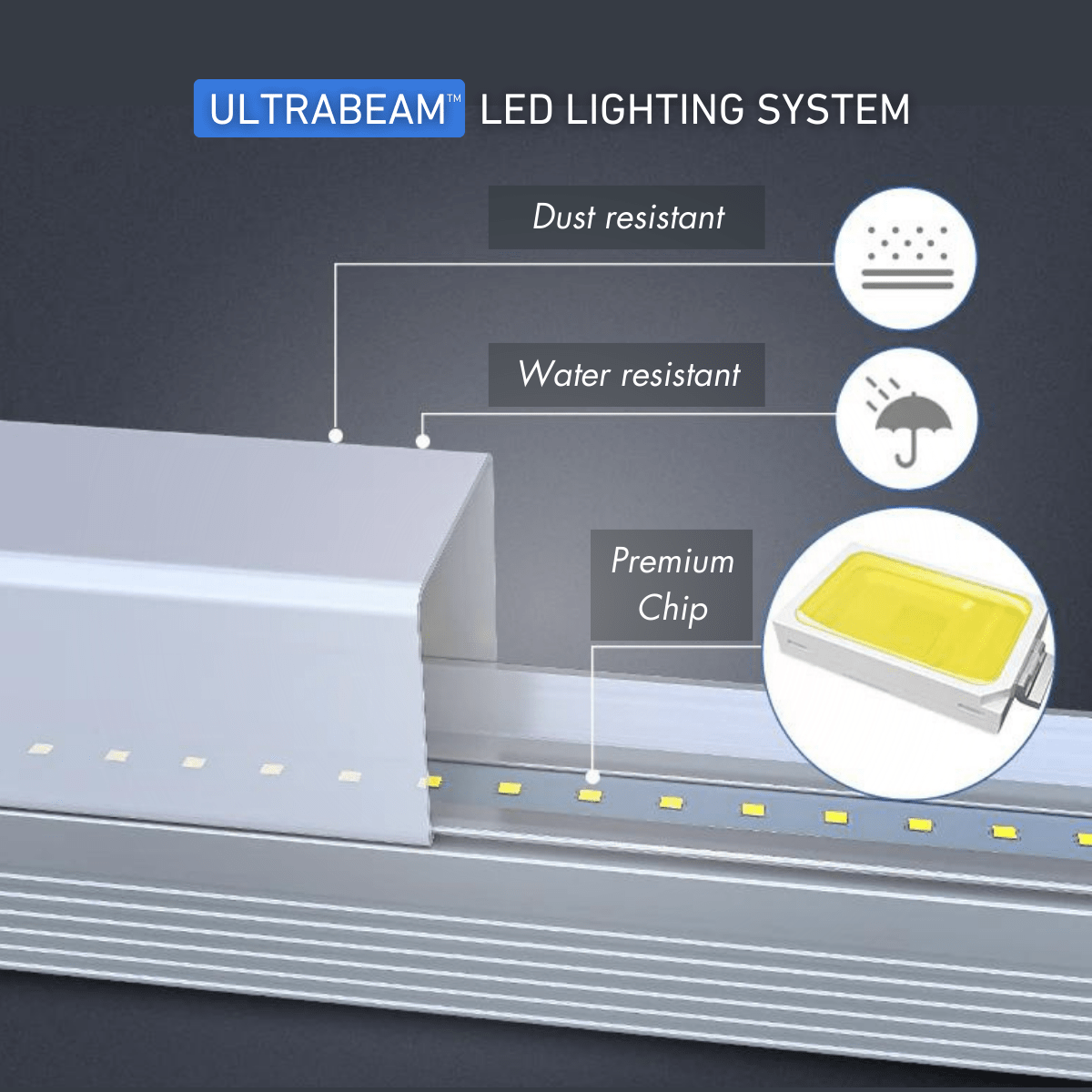

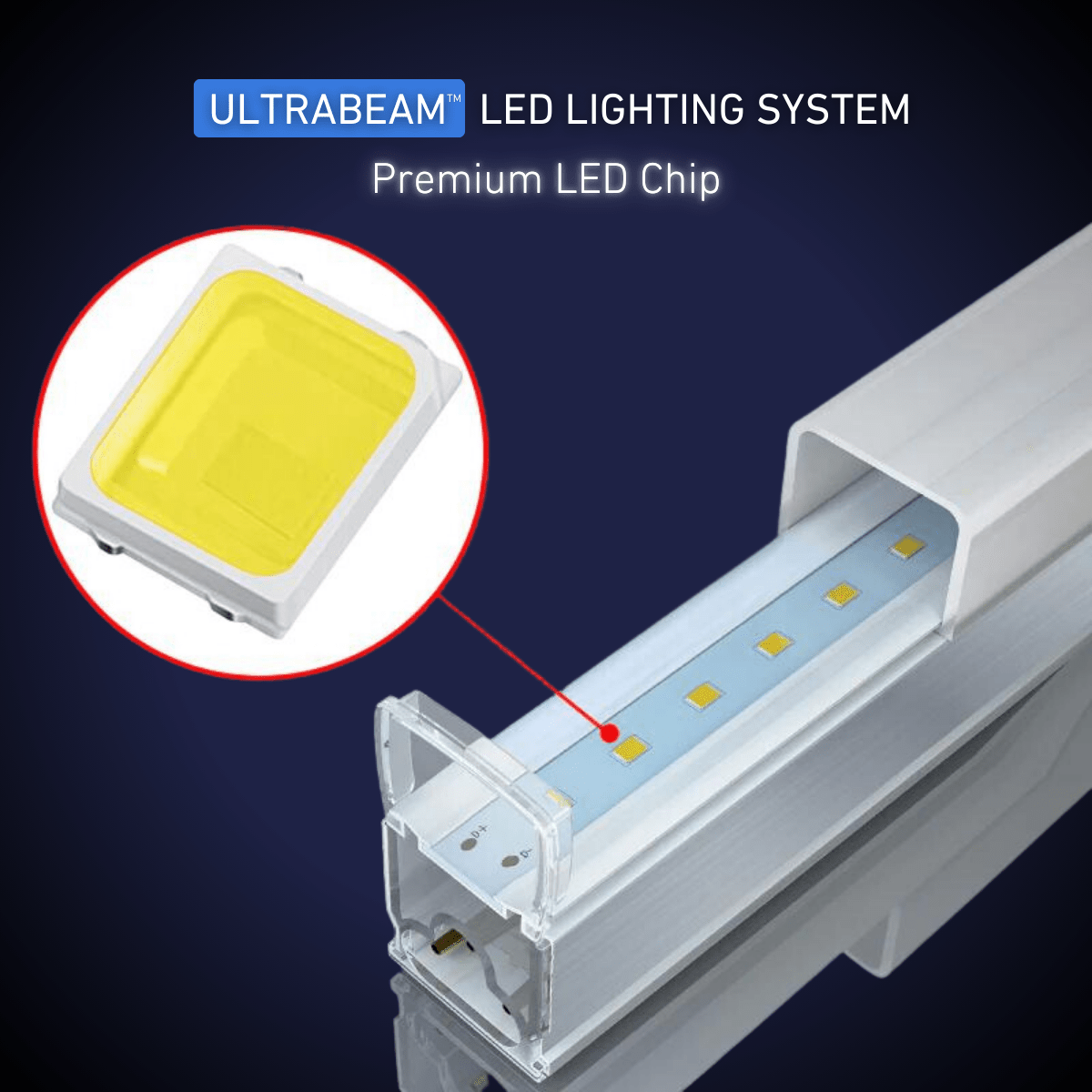

  • ULTRABEAM LED tube with one of its LED chips shown close up

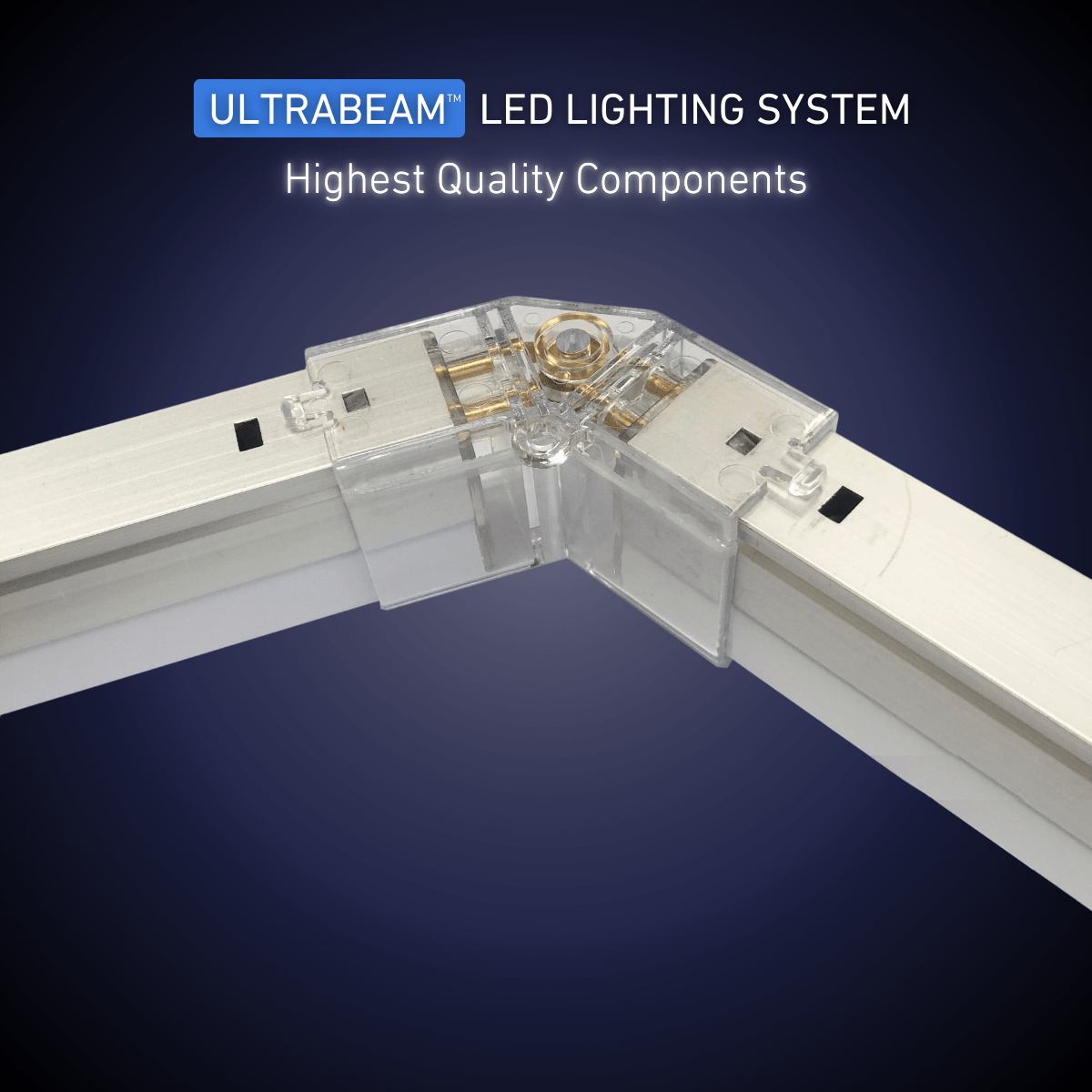

  • ULTRABEAM three-way connector joining the LED tubes

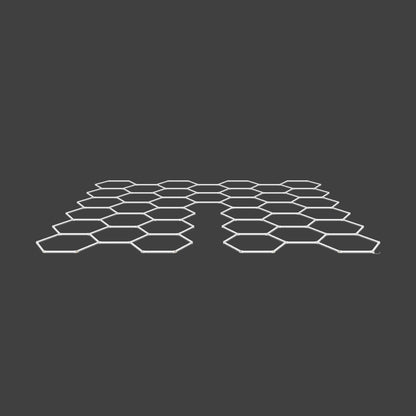

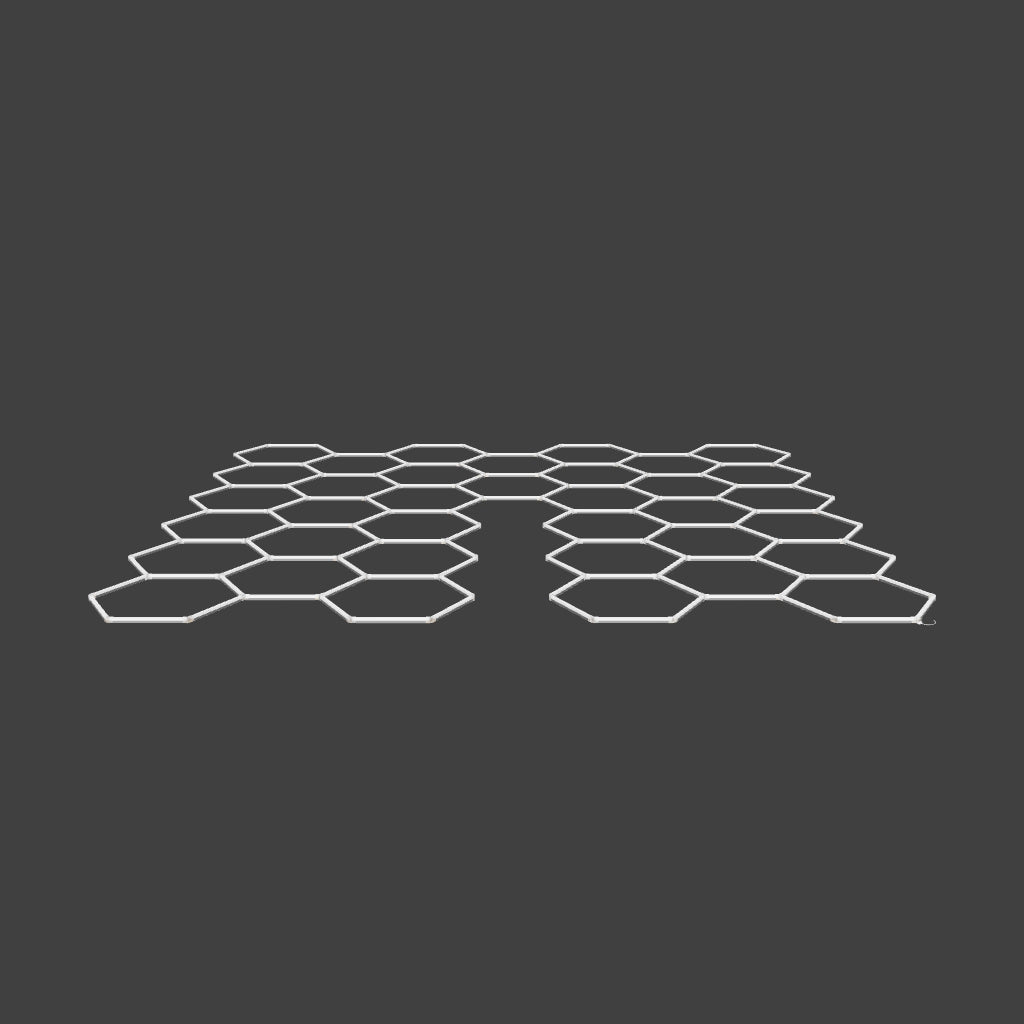

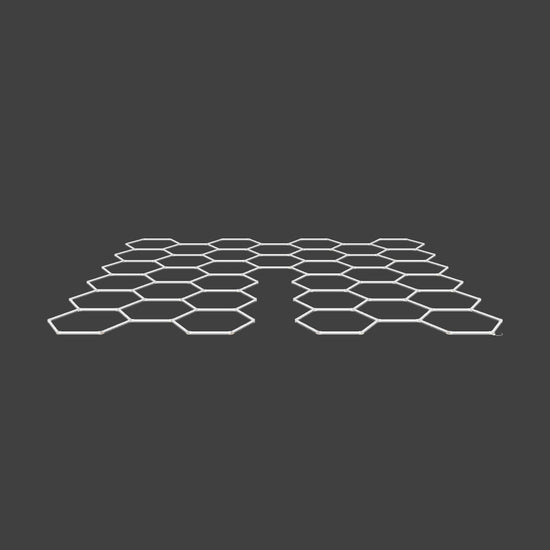

  • 3D model of the ULTRABEAM 36-Grid hexagon light

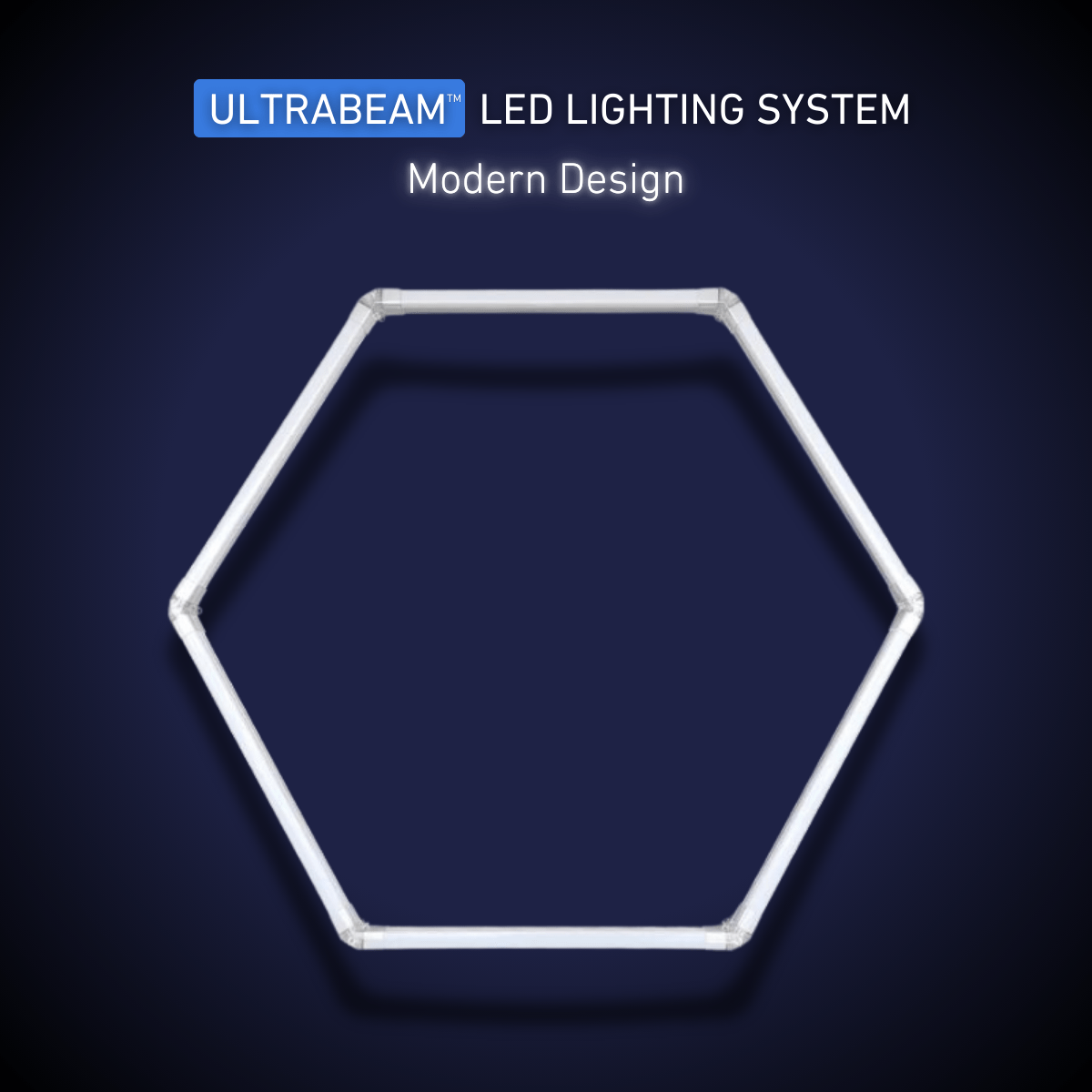

  • ULTRABEAM LED tubes joined into a hexagon
  • ULTRABEAM tube and connector joint, cut away to show the inside
  • ULTRABEAM LED tube with its row of LED chips

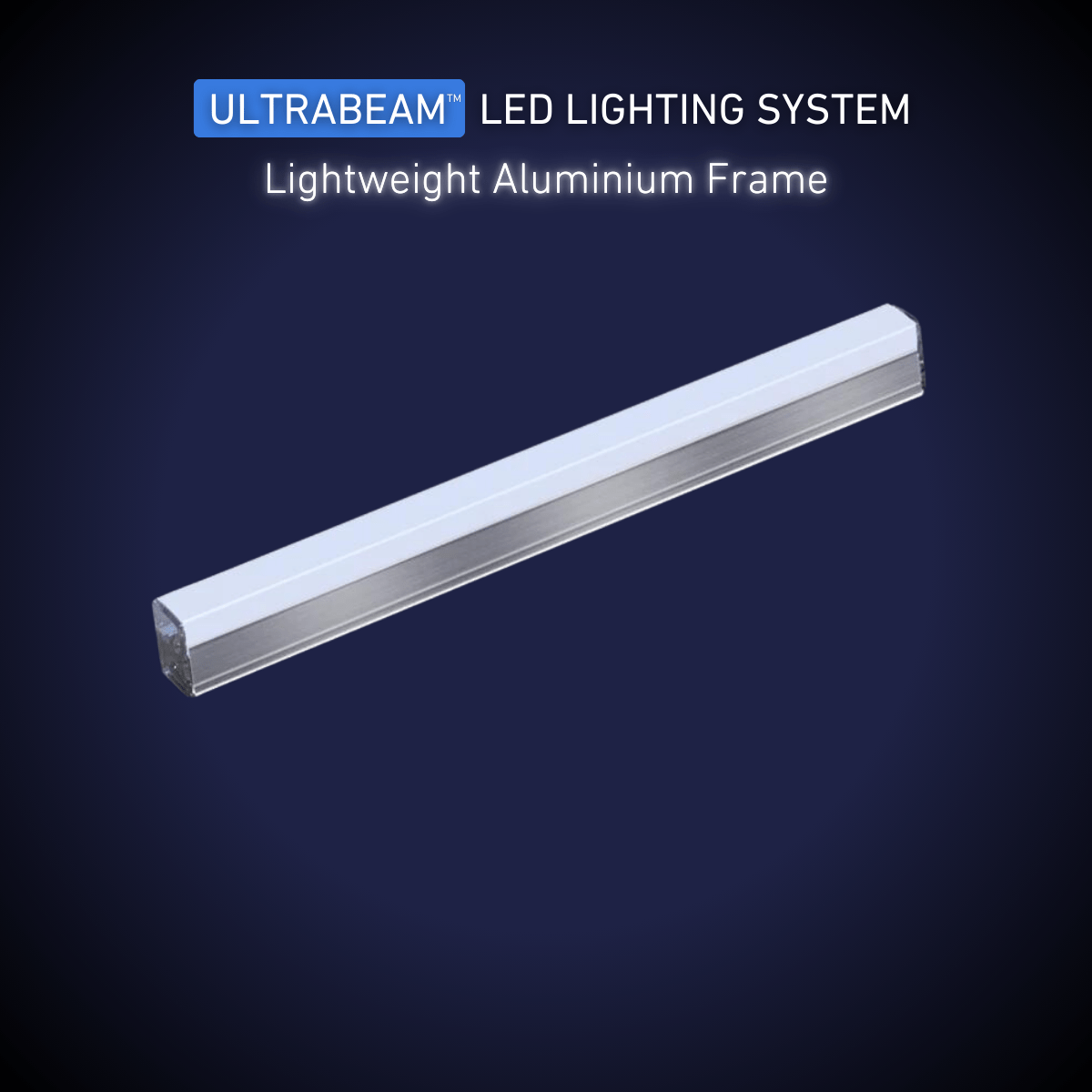

  • ULTRABEAM LED tube in its aluminium frame

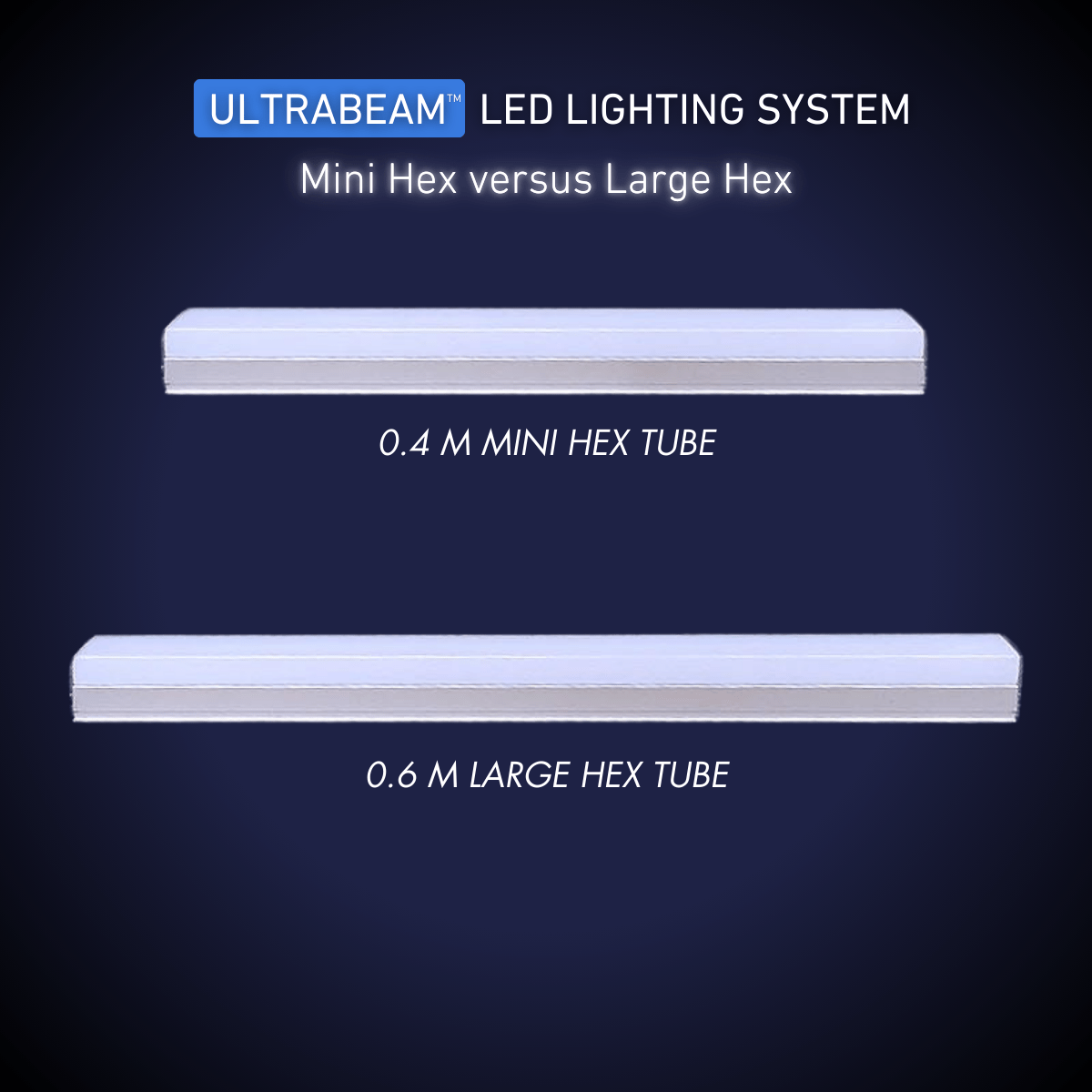

  • ULTRABEAM tubes in two lengths: 0.4 m for a mini hexagon, 0.6 m for a large one
  • Sleek Space electronics security

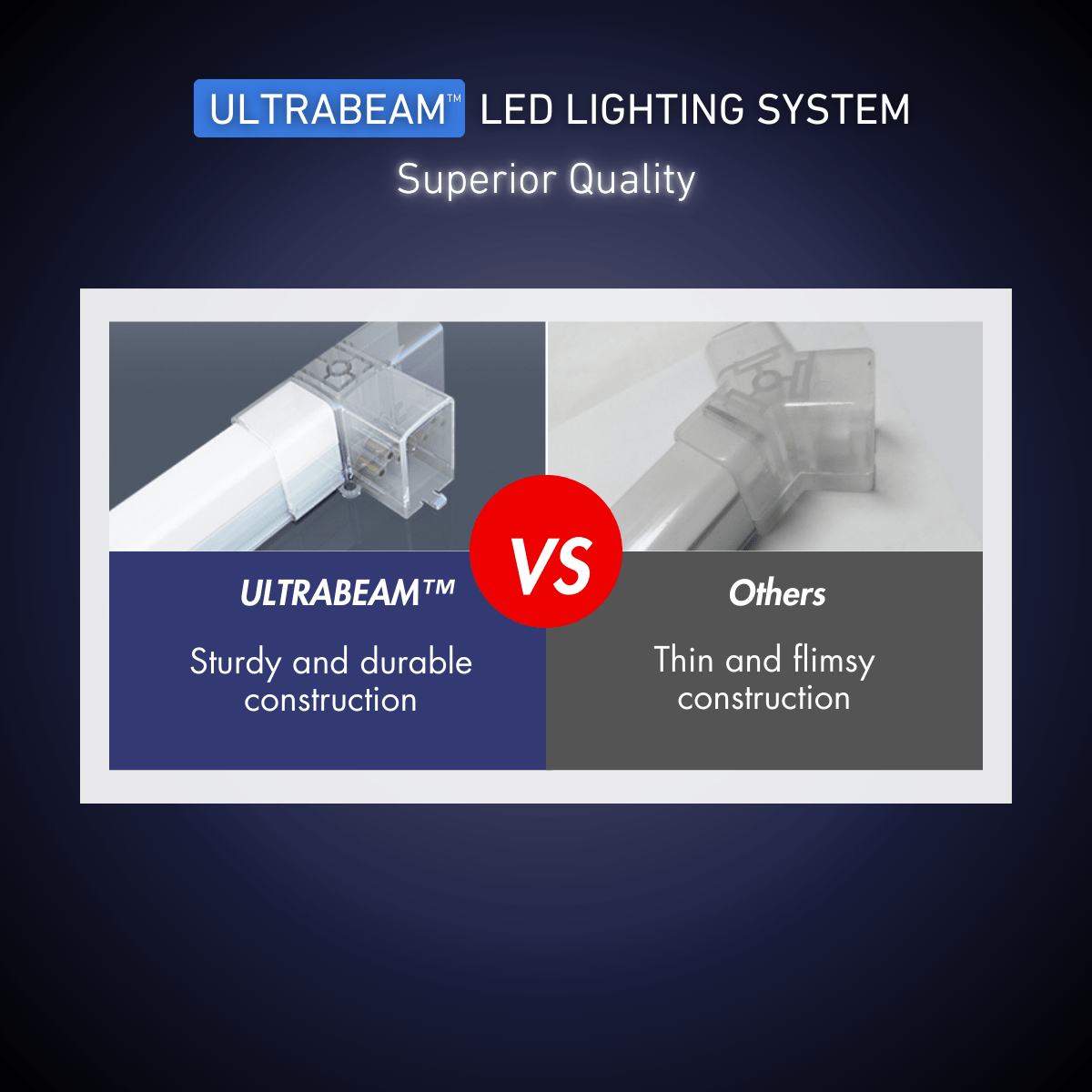

  • ULTRABEAM tube and connector, showing how the joint is built

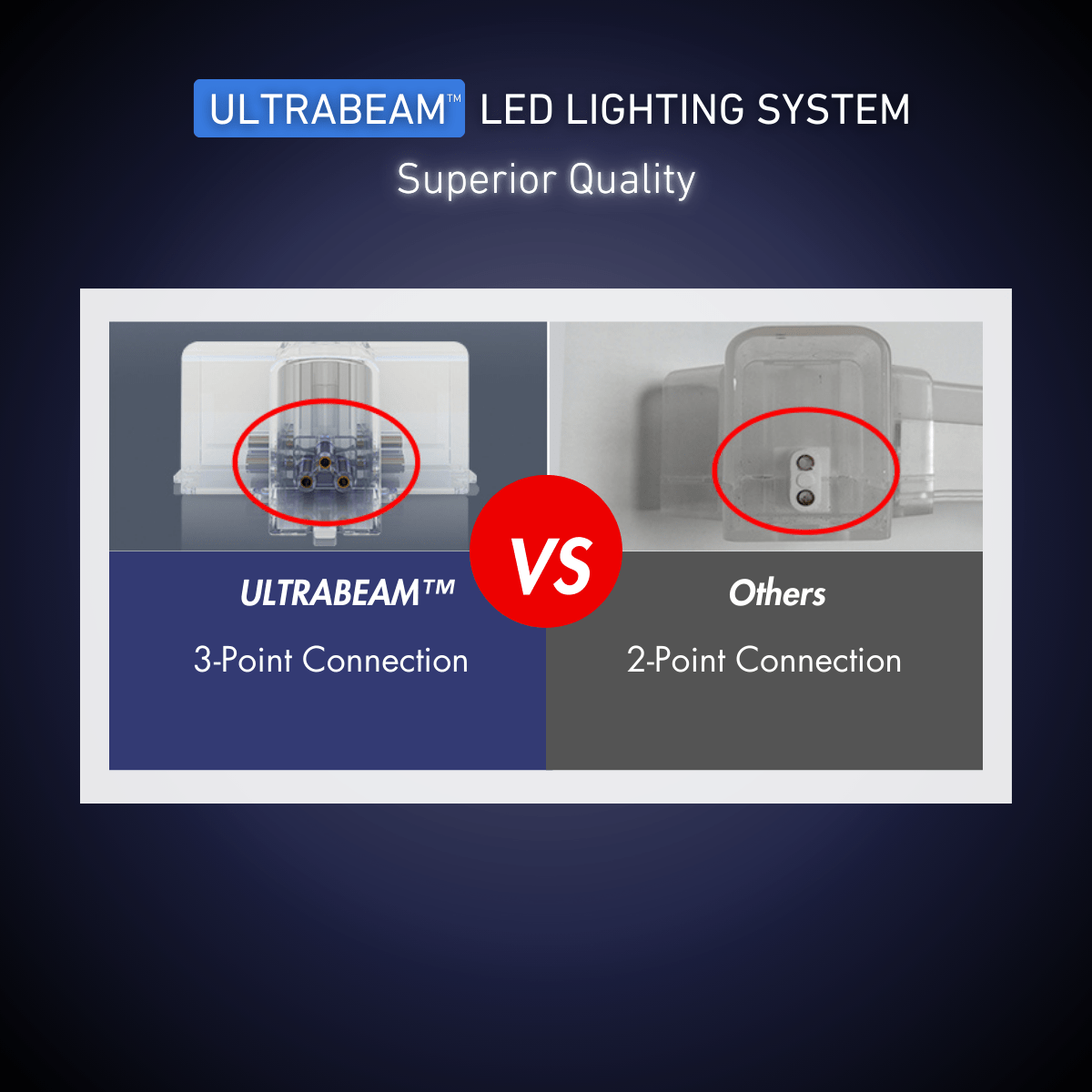

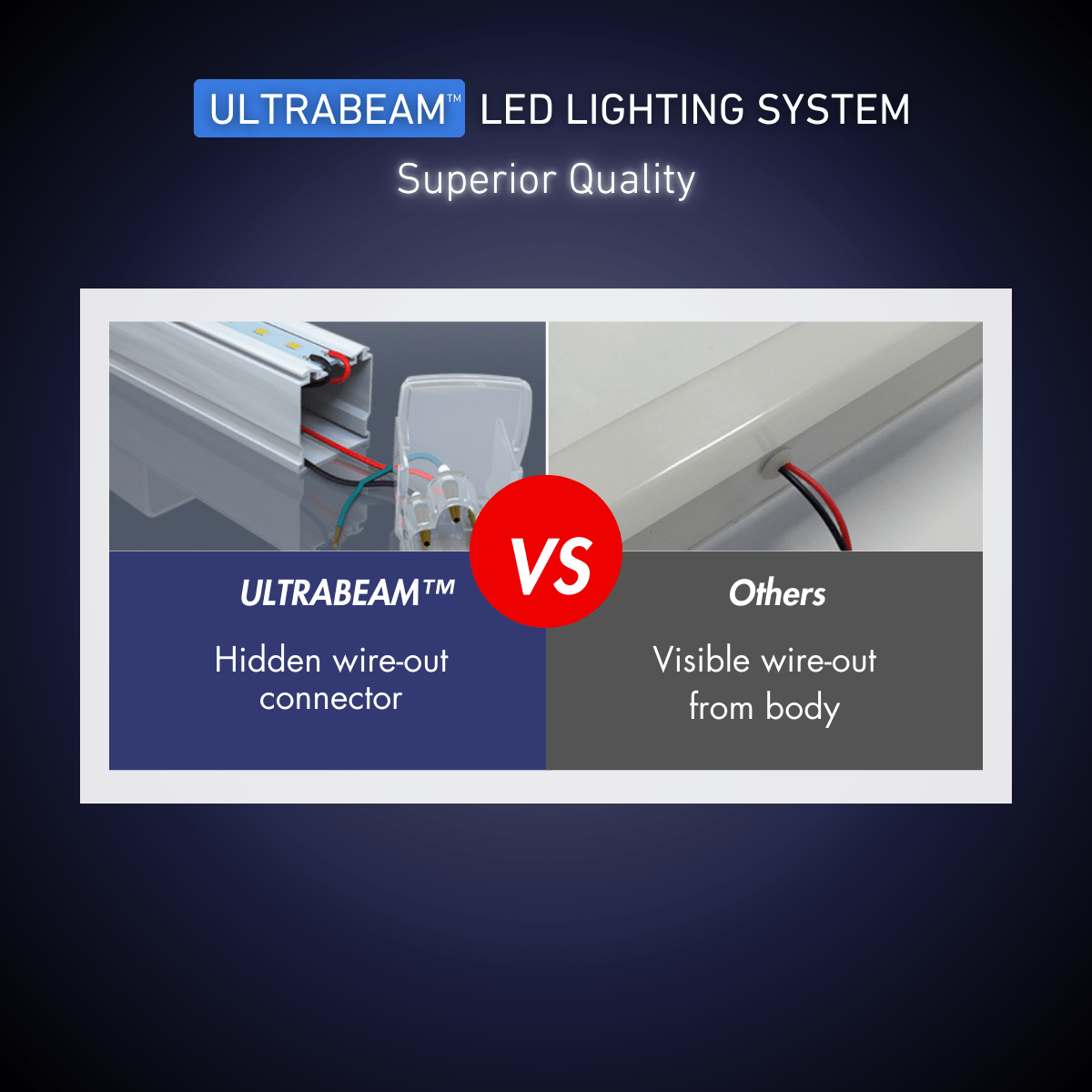

  • ULTRABEAM connector with the wiring hidden inside it
1 15

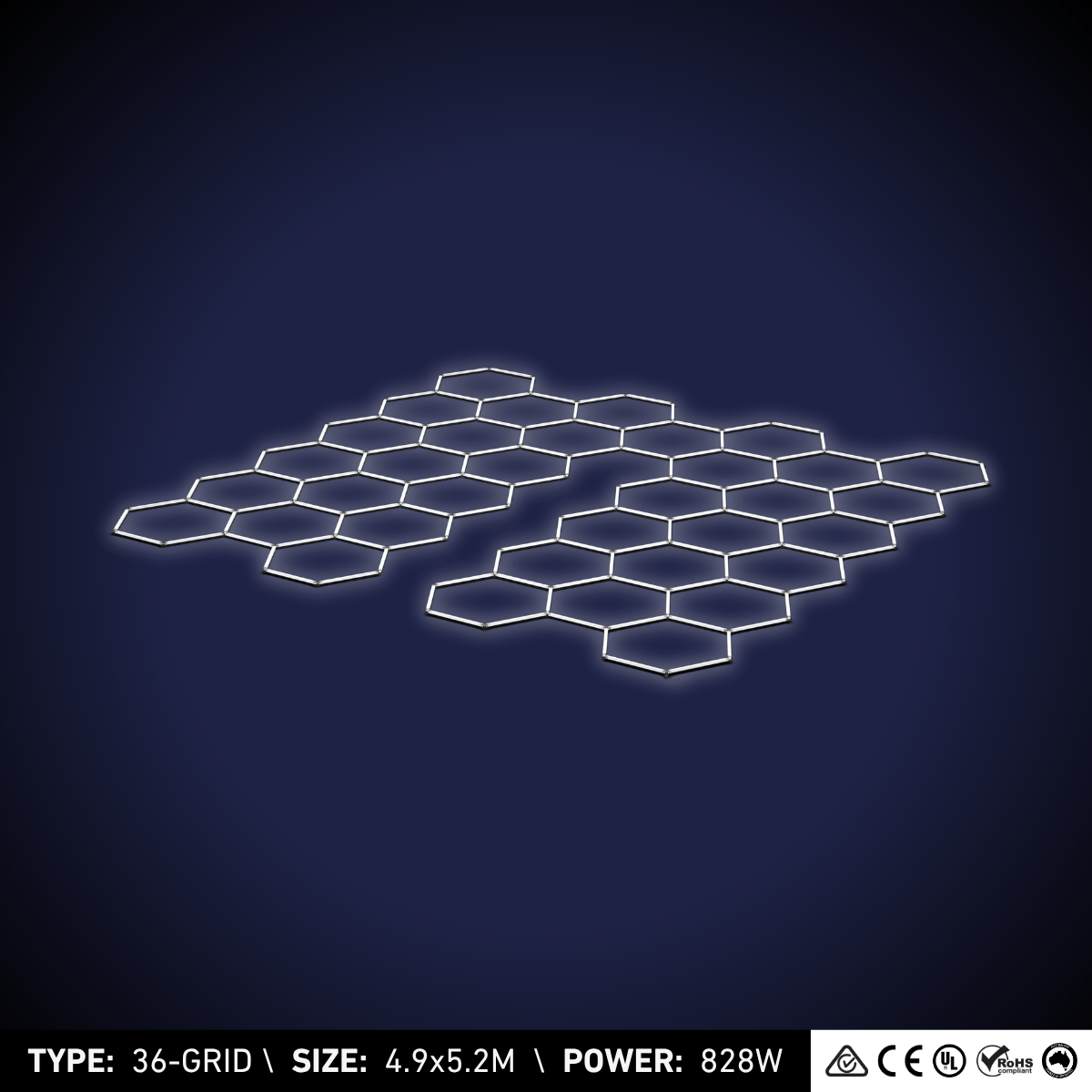

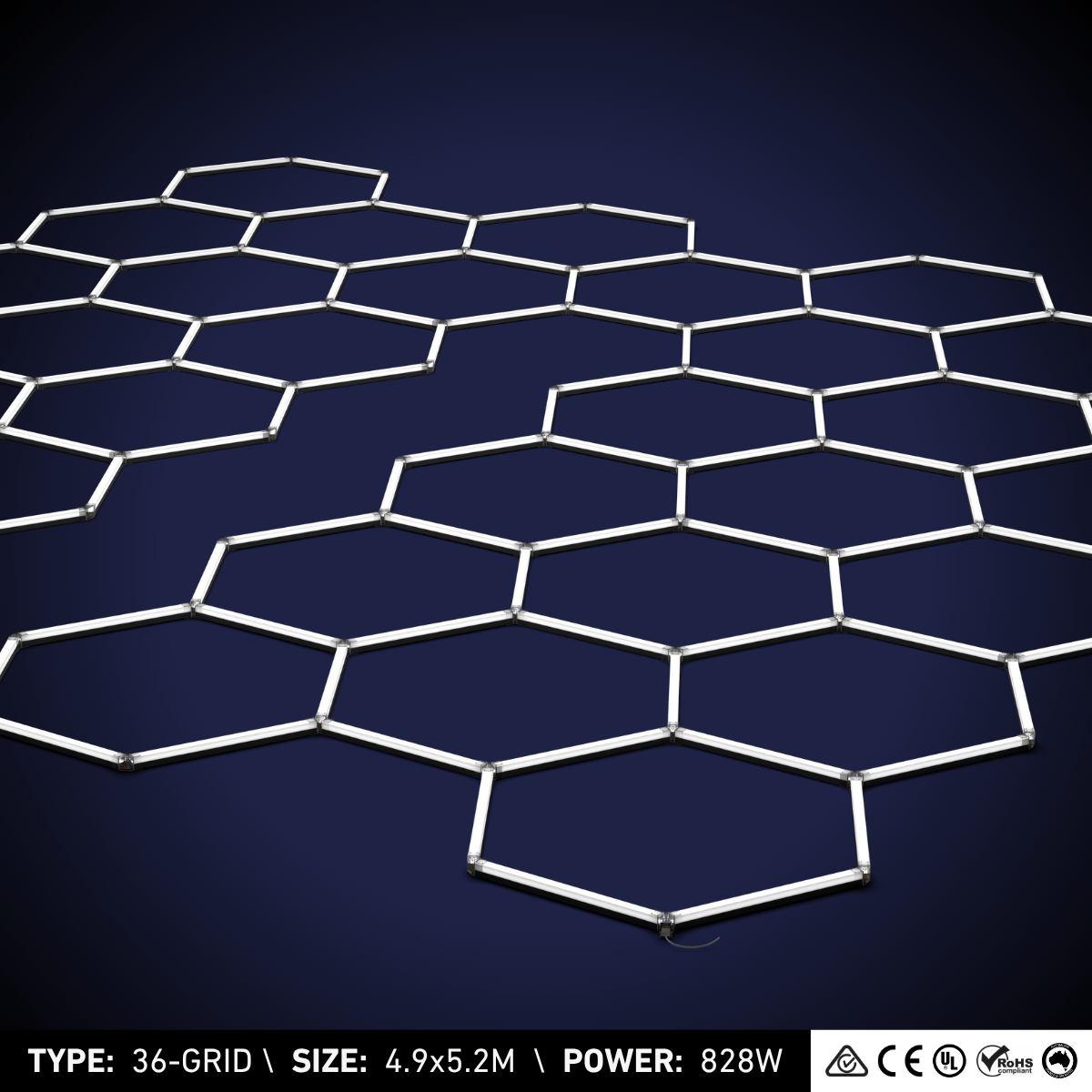

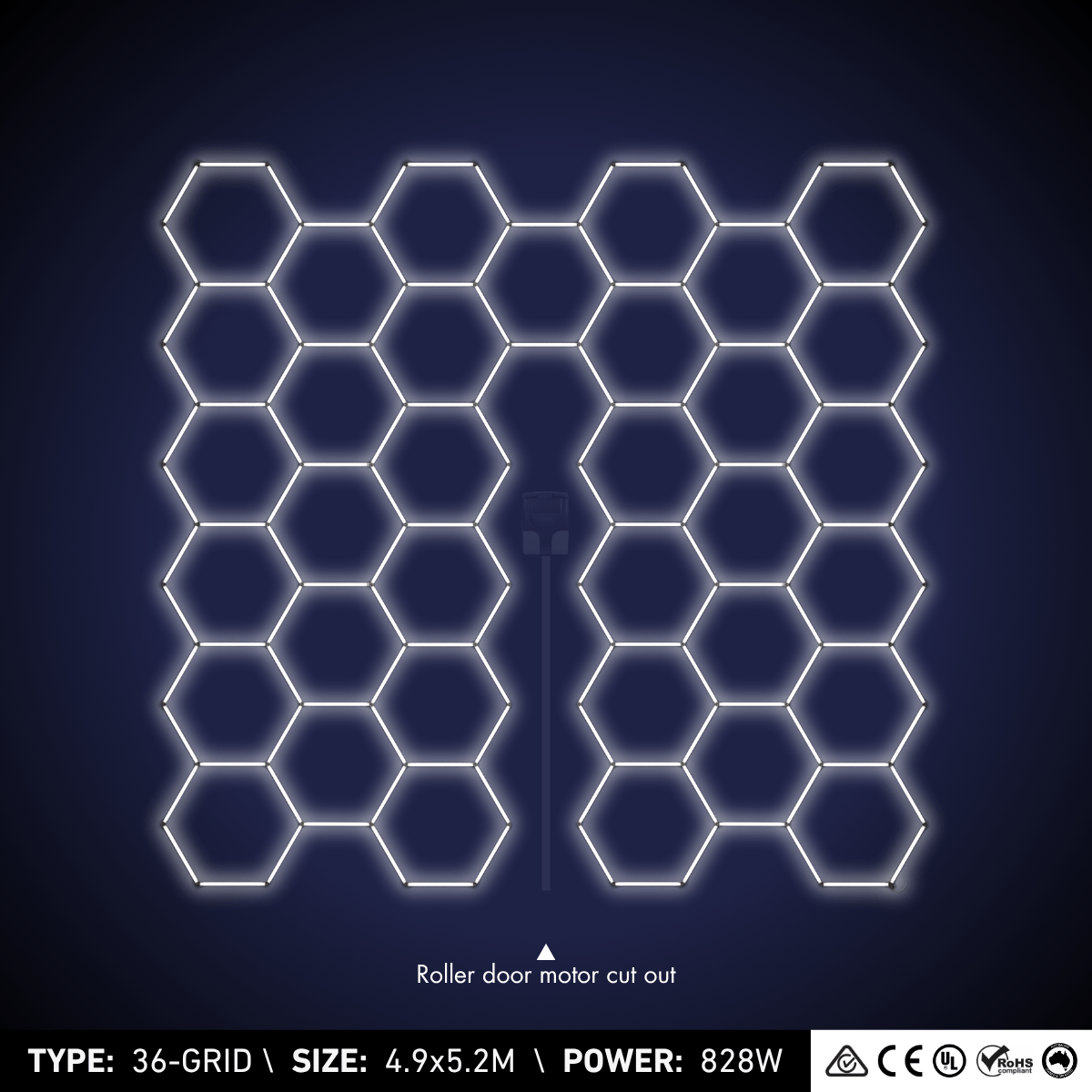

36-Grid Hexagon Light (4.8x5.2M, 828W)

36-Grid Hexagon Light (4.8x5.2M, 828W)
In stock in Melbourne, ready to ship Certified for Australia
$1,399
$2,399 $1,399
Save $1,000
Taxes included. Shipping calculated at checkout.

ULTRABEAM™ 36-Grid Standard Hexagon LED Light. 4.8 x 5.2 m coverage, 828W daylight output at 6500K. Details

Warm White
Neutral White
Cool White
Daylight

In the garages of

View full details

Before you order

Measure the ceiling you want lit and pick the size that fits inside it.

Even light with no hard shadows, because it comes from the whole grid.

Lay it out on the floor, click the tubes into the connectors and test it. Then lift it and fix it to the ceiling. An afternoon with a helper.

Into a standard power point, with one 1.5 m cord for the whole kit. A border has its own cord, so it needs a second socket. To put it on a wall switch, use a licensed electrician.

The tubes, the connectors, hanging cables, fixings and the power cord. The kit ships complete.

Illuminate 4.8 x 5.2 m of ceiling space with the ULTRABEAM™ 36-Grid Standard Hexagon LED Light. At 828 watts of 6500K daylight output, this 36-panel configuration delivers bright, even light suited for the largest and brightest configuration in the ULTRABEAM™ range.

  • 4.8 x 5.2 m coverage area — 36 hexagonal panels tessellate into a continuous ceiling-mounted light array with no dark gaps between panels.
  • 828W at 6500K daylight — true-colour rendering for paint inspection, detail work, and precision tasks under daylight-equivalent conditions.
  • Plug-and-play installation — mount via chain suspension, connect panels edge to edge, and plug into a standard 220–240V AC outlet.
  • LED efficiency — high lumen output at 828W with minimal heat generation and a service life far beyond fluorescent or halogen alternatives.

Specifications

Dimensions0.0m × 0.0m
Coverage area0.0 m²
LED tube count
Total power W
Total lumens lm
Hex cells

Electrical

Voltage100–240V AC
Colour temperature6500K daylight
CRI85+ (true colour rendering)
Efficacy~115 lumens per watt
Lifetime50,000 hours
EnergyAbout 60% less power than equivalent fluorescent strips
DriverPer-tube driver

Build

Kit layouts designedAustralia
FrameAircraft-grade aluminium
LensSealed PC, impact-resistant
ConnectorsProprietary angled, sealed mating
PlugAS/NZS 3112 3-pin earthed, 1.5m flex

Compliance

RCM markYes
EMC testedAS/NZS CISPR 15, 61547, 61000.3.2, 61000.3.3
Warranty5 years

Installation

TimeAn hour or two with a helper
ToolsDrill, screwdriver, ladder
ElectricianNot required
MethodLay flat, click tubes into connectors, lift to ceiling, mount, plug in
MountingFlush mount or 1m suspension cables (included)
Yes. The 36-Grid is the top of the range, delivering 828 watts across 4.8 x 5.2 metres. It provides the most coverage and the highest output of any single ULTRABEAM™ configuration.
Yes, provided the ceiling has adequate structure for multiple mounting points. The chain suspension system distributes weight across ceiling joists or rafters. Consult the installation guide for recommended anchor spacing.
For garages within the 4.8 x 5.2 metre footprint, the 36-Grid provides comprehensive coverage on its own. For spaces significantly larger than this, link additional ULTRABEAM™ panels or install supplementary units.

Shipping

Free shipping Australia-wide on all orders.

Orders are dispatched from our warehouses in Melbourne, Sydney, or Brisbane within 1-2 business days. We ship from the closest warehouse to you for fastest delivery.

Standard delivery typically takes 3-7 business days depending on your location. Express shipping available at checkout for metro areas.

Warehouse Pickup

Pickup is available from our Melbourne, Sydney and Brisbane warehouses, by advance order only: place your order first and we will let you know when it is ready to collect.

Returns

We offer a 40-day hassle-free returns policy. If you are not completely satisfied with your purchase, contact our team and we will arrange a return. Items must be unused and in original packaging.

Warranty

All products come with an Australian replacement warranty covering manufacturing defects. If any product fails under normal use, we will replace it free of charge including shipping.
